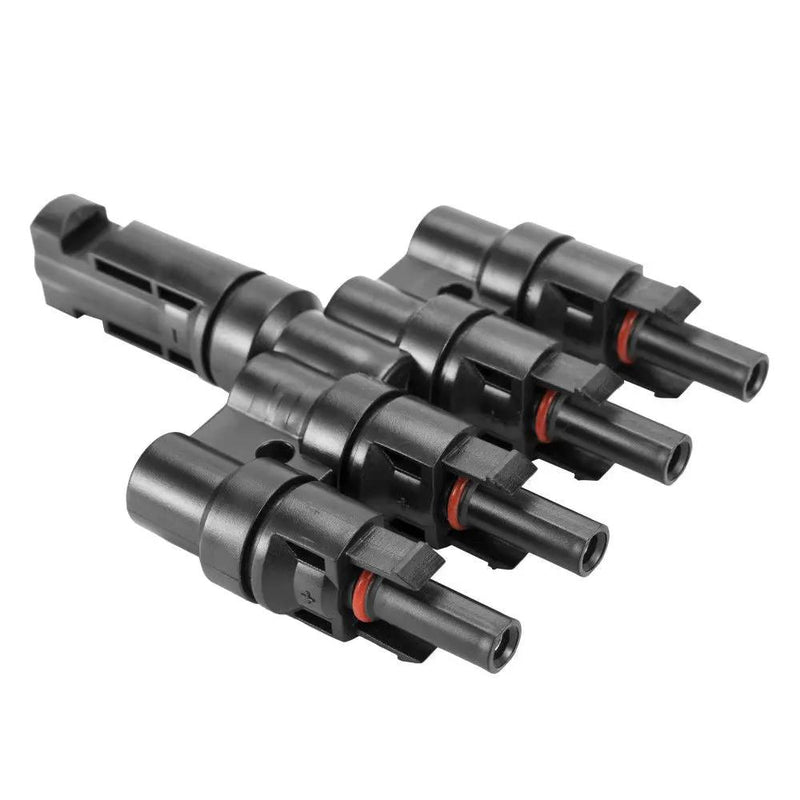

1 Pair MC4 4 to 1 T-Branch M/F Connectors for Solar Panel Cable Combiner IP67 PV
(Inc. GST)
Sent directly from NZ Supplier (4-7 Days)
⚠ ONLINE ONLY – Please Do Not Visit Store for This Item
1 Pair MC4 4 to 1 T-Branch M/F Connectors for Solar Panel Cable Combiner IP67 PV
Item Description
Protection Class:2
Rated Current:22(2.5 mm),30A(4,6 mm)
Protection Degree:IP2X,unmated;IP67,mated
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with big current and high voltage

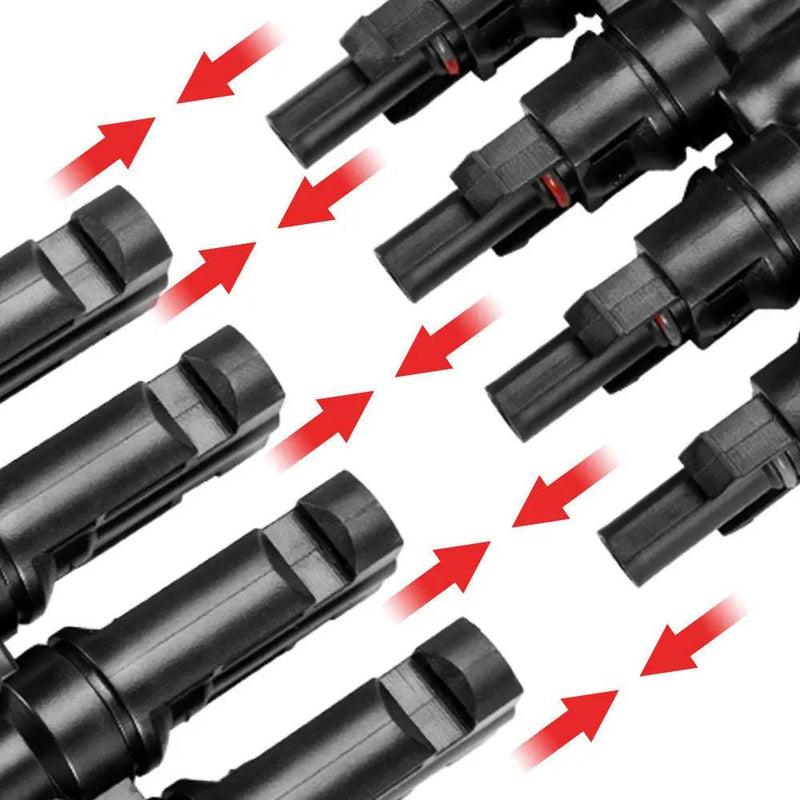

Locking system Snap in
Specifications
Rate Voltage: 1000V
Rated Current: 30A(4mm2,6mm2)
Waterproof Rate: IP 67
Test Voltage: 6000V(50Hz)
Insulation material: PPO
Contact material Copper: Sliver plated
Safe Class : 2
Flame Class: UL94-V0
Contact resistant of plug Connectors: <=5 megger
Insertion force: <=50N

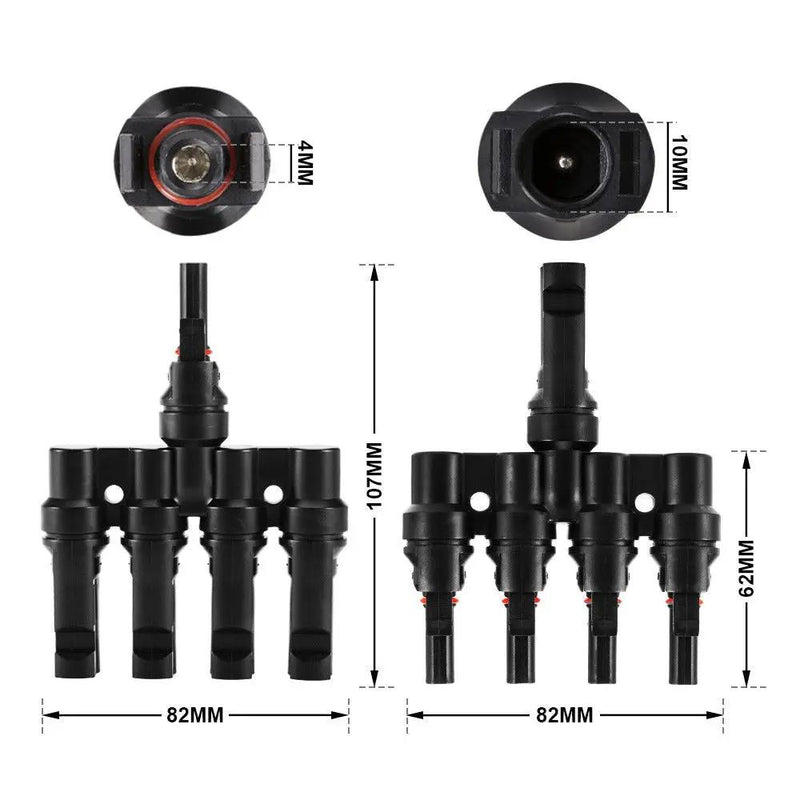

Diameter of Pin or Socket: 4mm
Locking System: Snap in
Suitable cable : 2.5mm2/4mm2/6mm2(AWG14/12/10)

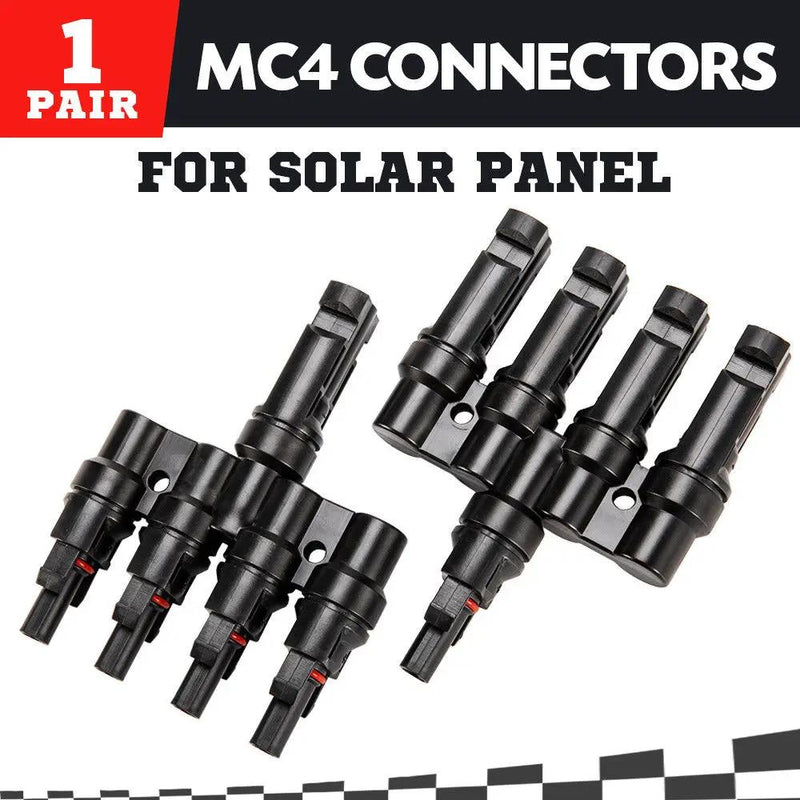

What's In Box

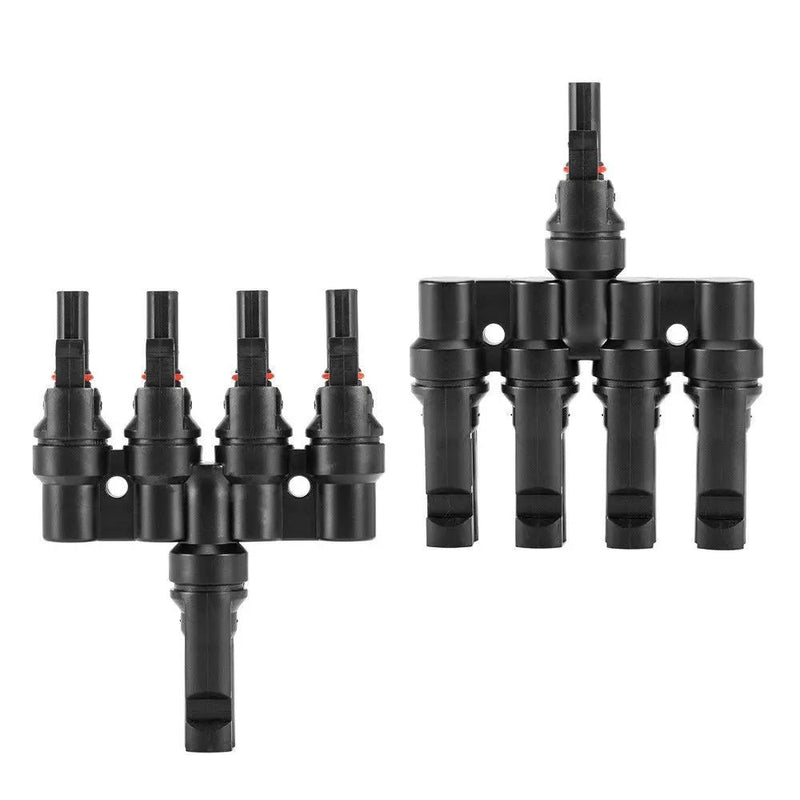

1x 1000V Solar PV T-piece MC4 Branch Connector (4M1F)
1x 1000V Solar PV T-piece MC4 Branch Connector (1M4F)
