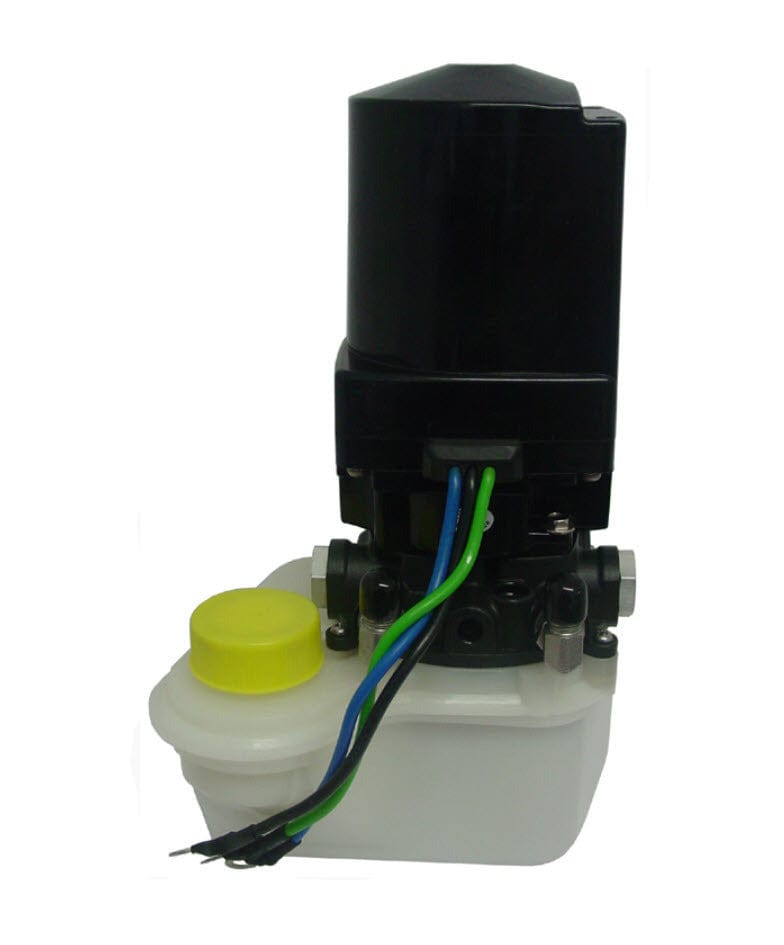

12V Power Trim / Tilt Hydraulic Pump Unit
Sent from NZ Supplier (1-2 Days)
12V Power Trim / Tilt Hydraulic Pump Unit - Product Code 6010501 - Mercruiser Volvo / Outboard Trim Tilt Hydraulic Motor
12V Power Trim / Tilt Hydraulic Pump Unit
Features
12V 3-Wire Power Trim / Tilt Hydraulic Pump Unit
Mercruiser Volvo / Outboard Trim Tilt Hydraulic Motor
Come complete with a hydraulic oil reservoir.
This after-market replacement part is compatible with Mercruiser and Volvo stern drives. In some cases, a fitting may be required for connection to your existing hydraulic lines.
Motor, Pump and reservoir assembly. It Fits Mercruiser Alpha and Bravo Stern drive 1983 and newer.
Replaces: Mercruiser: 14336A6, 14336A8, 14336A9, 14336A15,
88183A5, 88183A12
Dimensions 172.8mm (L) x 150.8mm (W) x 274.1mm (H)
Specifications
Operating pressure: UP 105-130Kgf/cm2, DOWN 50-60Kgf/cm2
Maximum pressure: 170-210Kgf/cm2
Volume: 3.5LPM
- Replace these original Manufacturer Part Numbers:
- MERCURY MARINE 14336A20, 14336A8, 88183A12
- ARCO 6275
- EMS 49-8025
- API MARINE PT500N
- THIS MOTOR IS USED IN THESE APPLICATIONS
- MERCRUISER GM120 2.5L 1983-1989
- GM140 3.0L 1982-1989
- GML4 3.0L 1999-UP
- MERC L4 165 3.7L 1987-1989
- MERC L4 180 3.7L 1987-1989
- GM V6 175 4.3L 1987-1992
- GM V6 205 1985-1991
- GM V6 4.3L LX/H/EFI 1992-UP
- GM V8 200/230 5.0L 1987-1995
- GM V8 260 1987-1995
- GM V8 5.7L L/LX/EFI 1996-UP
- GM V8 350 MAG 1997-UP
- GM V8 7.4L 1988-UP
- GM V8 454 1995-UP
- GM V8 500 BRAVO 1994-1997
- GM V8 502/520 MAG BRAVO 1990-1999
- 600 SC 1997
It fits most Volvo sterndrives; however connections maybe need to be altered.
Dimensions: 172.8mm (L) x 150.8mm (W) x 274.1mm (H)
Wiring connections
Blue - Up
Black - Ground
Green - Down
THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS
PRODUCT CODE 6010501
J - 26.07.22
