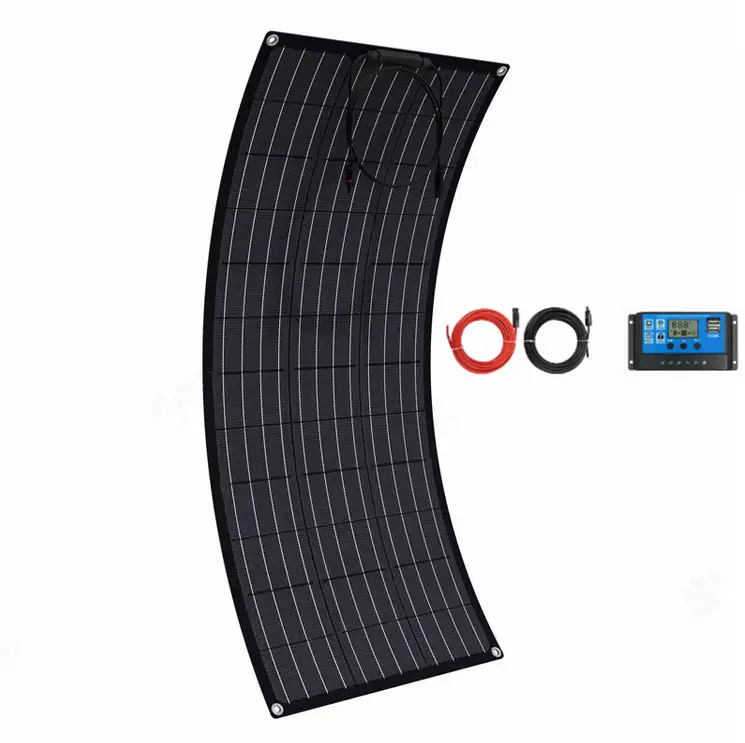

150W Flexible Solar Panel+ 30A CONTROLLER + 20m Cable
Supplier Direct/Internet Order Only
* Please do not visit the shop
(Inc. GST)
1200 x 670 x 3mm
9bb mono solar cell
transparent backsheet as the first layer, black backsheet, strip junction box with 90cm MC4 connector
Weight: 3.2KG
25 Years Power Output Guaranteed
Maximum Power(Pmax) 150W
Max Power Voltage 19.60V
Max Power Current 7.65A
Open-Circuit Voltage 23.3V
Short-Circuit Current 8.42A
Maximum System Voltage 1000VDC
Temperature Range -40°C to +85°C
Power Tolerance ± 2%
Standard Test Conditions 1000W/m2, AM1.5, 25°C
Solar Cell Mono
Product Dimension 1200x670x3mm
90cm MC4 Connector
Note: It is Semi-Flexible Solar Panel. Please do not over-bend or hyper-expand your solar panel!
Qty:
1x 150W Flexible Solar Panel
1x 30A SOLAR PANEL CHARGE CONTROLLER & TIMER
2 x 10M Extension Cable Wire (Black & Red) + MC4 Connectors
