AIRMAR B45 XSONIC 50/200 kHz Transducer
Sent from NZ Supplier (3-4 Days)

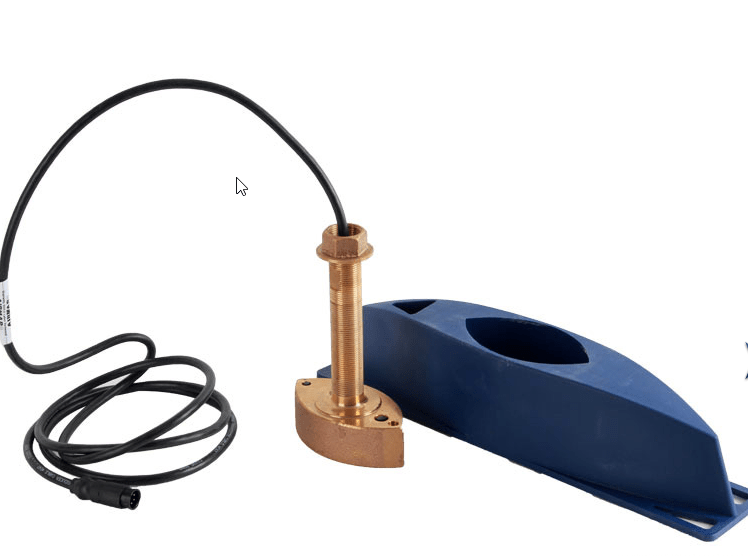

AIRMAR B45 XSONIC Bronze Thru-Hull 50/200 kHz Transducer - The B45 is Airmar’s Smallest, Bronze, Thru-Hull Stem
AIRMAR B45 XSONIC Bronze Thru-Hull 50/200 kHz Transducer - LOW STOCK
Features
Good sensitivity in a compact housing
The Airmar B45 Thru-Hull Transducer is the smallest, bronze, thru-hull system recommended for planing-hull powerboats and cruising sailboats up to 9m. The classic housing is streamlined to deflect aerated water from the transducer's face so you'll get solid echo returns and clean crisp images. The high-performance fairing also boosts echosounder performance and provide optimal results for all installation. The B45 is designed for use on all fibreglass and wood boat types.
- Depth and temperature
- Thru-hull bronze housing minimises electrical interference, offers strength and durability
- 50/200 kHz dual-frequency operation
- Ceramic element - transfers more power into the water and receives more information than standard transducer elements
- 12m cable with connector
- RMS Power- 600 watts
- Boat size- Recommended for planing-hull powerboats and cruising sailboats up to 9 m -30’
- Frequency- 50/200 kHz dual-frequency operation
Specifications
- Weight- 2.5 kg -5.5 lb
- Hull deadrise- Up to 26 degrees with fairing
- Acoustic Window- Urethane
- Beamwidth- 50 kHz-45 degrees- 200 kHz-12 degrees
- Maximum depth range- 50 kHz- 353m- 200 kHz- 206m
- Hull deadrise angle- 0 degrees to 26 degrees
- Dimensions -with fairing block- 347 x 55 x 75mm
PLEASE REFER TO THE PRODUCT DATA SHEET TO SEE WHAT TRANSDUCER OPTIONS ARE AVAILABLE
CLICK HERE TO DISCOVER AIRMAR'S BOTTOM COVERAGE CALCULATOR
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIERS
Product Code 000-13946-001
