Airmar

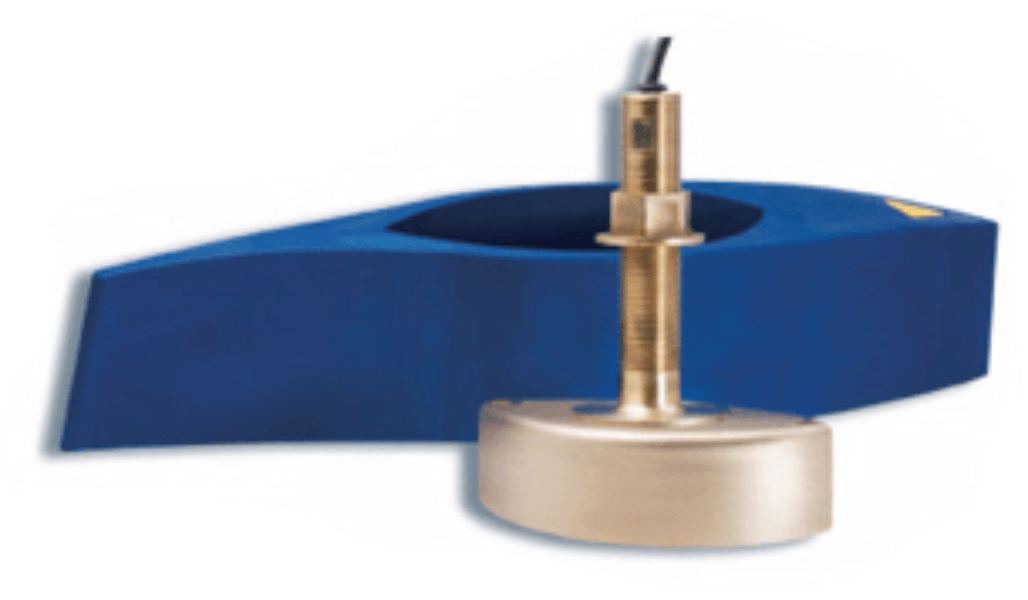

Airmar XSonic B275LH-W T/D
Sent from NZ Supplier (3-4 Days)
Airmar XSonic B275LH-W T/D - Chirp-Ready Transducers with Wide-Beam for Inshore and Pelagic Fishing Product No. 000-13771-001
Airmar XSonic B275LH-W T/D - email or ring for stock update thanks
Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25-degree beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on display compared to most high-frequency, narrow-beam transducer options.
The included high-performance fairing improves broadband results at speeds over 30 knots [34 MPH].
The high wide is ideal for inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m [500 feet].
The low-frequency band and 1 kW of power also support excellent deep-water performance. Get the best of both worlds with Airmar's dual-frequency, Chirp-ready transducers with wide-beam coverage.
Note: Dual channel sonar ports are required. [NSSevo3S, S5100 Module etc].
- The depth and fast-response water-temperature sensor.
- 1 kW for outstanding deep-water performance from the low frequency.
- Low frequency; 42 to 65 kHz.
- 25-degree to 16-degree beam width.
- Maximum depth of 914 m [3,000 feet].
- High frequency; 150 to 250 kHz.
- 25-degree constant beamwidth.
- Maximum depth of 152 m [500 feet].
- 123 kHz of total bandwidth from one transducer.
- It covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth.
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation.
- High wide beamwidth yields more coverage for detecting fish in the upper water column.
- Bronze housing with a high-performance fairing for optimal performance at higher speeds.
- Also available as transom [TM275LHW] and pocket/keel [PM275LHW] mounts.
THIS PRODUCT IS SHIPPED FROM OUR LOCAL SUPPLIER
Product No. 000-13771-001
