Airmar Xsonic Tm260 T/M 50/200Khz Diplexer

Airmar XSONIC TM260 T/M 50/200KHZ Diplexer Transducer - Powerful, Yet Sensitive - Product Code 000-13904-001

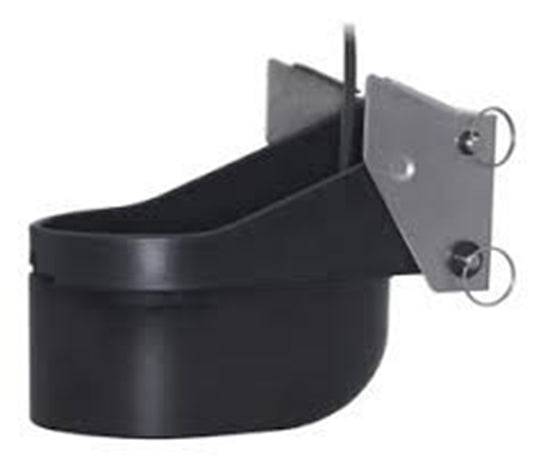

Airmar XSONIC TM260 T/M 50/200KHZ Diplexer Transducer

Features

XSONIC TM260 Plastic transom-mount. 50/200Khz with diplexer. Depth/temp. 50Khz @ 19 deg; 200Khz @ 6 deg. - Black 9-pin connector- Cable length 10 m (33.0 ft)


Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

• Depth and fast-response water-temperature sensor
• 1 kW
• Dual-frequency element:
• 50 kHz with a 19° beamwidth for depth performance to 800 m (2,600')
• 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000')
• Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual transmission-line fishfinders
• Urethane transom transducer for installation on outboard and I/O powered boats.
• The stainless steel kick-up bracket locks in the “up” position and will not damage the transom.

Specifications

• Weight: 4 kg (8.9 lb.)
• Recommended Boat Length: 10 m (32') and up
• Hull Deadrise: Up to 28°
• Transom Angle: 3° to 21°
• Acoustic Window: Urethane
• Speed Performance: Up to 35 MPH

Product Code 000-13904-001
