Airmar Xsonic Tm275Lh W-chirp T/M Td

Airmar XSONIC TM275LH w-Chirp T/M TD - Dual Black nine pin connectors: Cable length 10 m (33.0 ft).

Airmar XSONIC TM275LH w-Chirp T/M TD

Features

XSONIC TM275LH-W Urethane, Transom-mounted, 42-65 kHz/150-250 kHz Dual Channel CHIRP transducer (Wide Angle): Dual Black nine pin connectors: Cable length 10 m (33.0 ft)

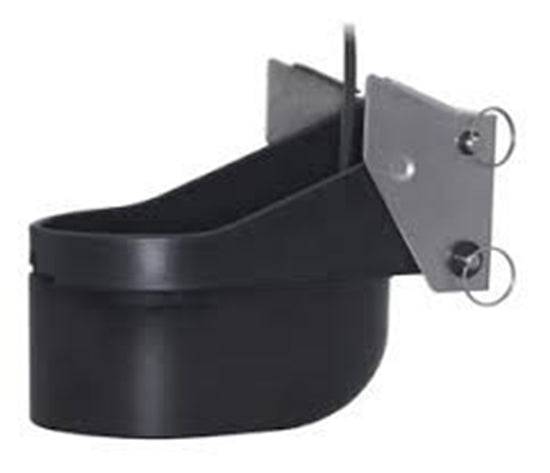

The TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and shallower depths. The TM275C-LHW CHIRP transom-mount transducer has eight internal broadband ceramic elements. The low-frequency can be chirped from 42 to 65 kHz, while the high-frequency chirps from 130 to 210 kHz. The beam width is a comprehensive 25° across all frequencies. Also included is a high-precision water-temperature sensor for accurate sea-surface temperature readings.

Key Features:


42-65 kHz Low CHIRP with 25-16° beam width.

150-250 kHz High CHIRP with a wide 25° beam for excellent fish targets.

Up to 1200 m (4000 ft) range with Low CHIRP.

Eight internal broadband ceramics.

Transom-mounted with urethane housing and stainless steel mounting bracket (can retrofit to existing TM258 & TM260 brackets).

Suitable for fibreglass, wood and metal hulls.

Ideal for sportfishing and commercial vessels 8 m (25 ft) and up.

Recommended for use with the NSSevo3 and BSM-3 broadband sounder module.

FEATURES:

• The depth and fast-response water-temperature sensor
• 1 kW for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz
• 25° to 16° beam
• Maximum depth of 914 m (3,000')
• High frequency: 150 to 250 kHz
• 25° constant beamwidth
• Maximum depth of 914 m (3,000')
• 123 kHz of total bandwidth from one transducer
• It covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Transom mount, urethane transducer
• The stainless steel kick-up bracket locks in the “up” position and will not damage the transom.

SPECIFICATIONS:

• Weight: 4 kg (8.9 lb.)
• Recommended Boat Length: 10 m (32') and up
• Transom Angle: 3° to 21°
• Acoustic Window: Urethane
• Includes: Stainless steel bracket and mounting hardware
• Transducer Element: Eight internal broadband ceramic assemblies
