ANCHORMAX

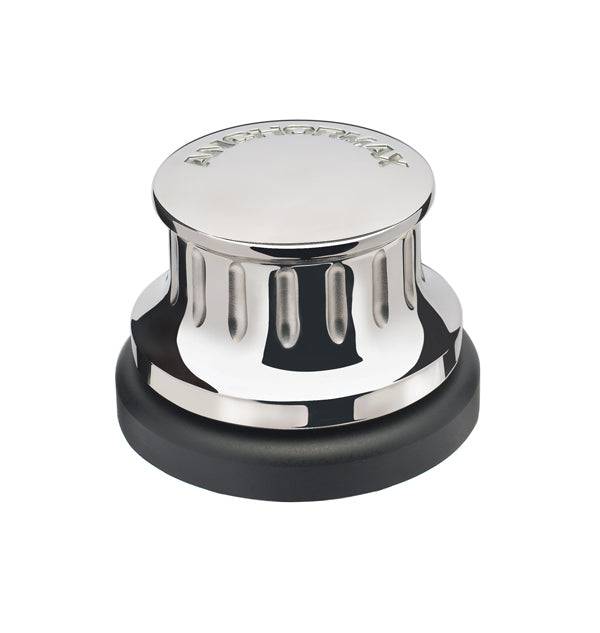

Anchormax Capstan
Sent from NZ Supplier (1-2 Days)
Anchormax Marine Capstan - A highly versatile vertical capstan or general-purpose electric winch
Anchormax Marine Capstan
Features
Supplied with waterproof Foot Switch
An extremely versatile vertical capstan
- Anchor winch
- Pot haulier
- Davit winch
The ANCHORMAX has an extremely high power-to-weight ratio. A vertically mounted, permanent magnet motor drives the compact, fully sealed gearbox. Intrusion below decks is minimised, making the design ideal for boats from 5m (16ft) to 10m (32ft). Fitting to the ship is simple, as no dismantling of the winch is required. The ANCHORMAX gear housings are marine-grade alloy, and the drum is stainless steel. It is supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions.
The ANCHORMAX, however, is not recommended for use to haul halyards, and the same applies to hauling chain.
The ANCHORMAX is not recommended for use to haul chains.
The vertical design of the ANCHORMAX is a perfect fit for smaller powerboats or sailboats. Its versatility shines through as it can be used for anchor rodes, as a docking capstan on larger craft, or for auxiliary line hauling from any direction.
- High-quality, hard-wearing stainless steel above deck components.
- Functional rope hauling from any direction using a fluted, snag-free warping drum for positive control of all ropes.
- Simplified through deck installation by modular design and precise alignment of the gearbox to the top works.
- Alternative gearbox/motor positions accommodate virtually all installation situations.
- Compact, reliable gearbox made of corrosion-resistant materials.
- Anodized aluminium gearbox and spacer on VC500 and VC1000 models.
- Heavy-duty, dual-direction motors designed for marine winches.
- Easily disassembled for servicing.
- Can be mounted horizontally as a pot haulier or Davit winch.
Specifications
Maximum Pull 386kg 850lb
Power 12V, 500W
Weight 8kg 17.6lbs
Max. Boat Length 10m 33'
Max. Boat Weight 4 tons
nominal working load 24m/min 75' per min
PLEASE READ THE SPECS CORRECTLY BEFORE BUYING
