VETUS

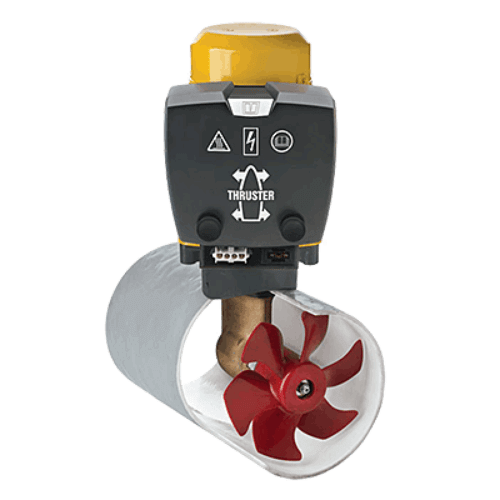

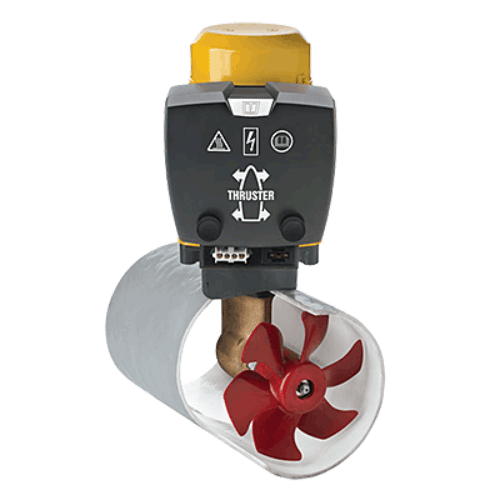

Bow Thruster 160 Kgf 7kW 24v
Online Sales only - Sent directly from NZ supplier (not avaiable in store)
Sent from NZ Supplier (3-4 Days)
Quantity:
Bow Thruster 160 Kgf 7kW 24v - The Vetus 160Kgf unit is designed for vessels 16.5 to 22 meters in length.
Bow Thruster 160 Kgf 7kW 24v
Features
The Vetus 160Kgf unit is designed for vessels 16.5 to 22 meters in length.
Dimensions [mm] – See Image Above
- A 222
- B 548
- C 108
- D 500 / 1000
- E 240
- F 185 Diameter
- G 250
- H 250 Diameter
VETUS WARRANTY
3 years warranty on equipment and 5 years warranty on engines
Specifications
- Thrust (N / KGF) 1600 – 160
- Voltage 24 V DC
- Ignition Protection No
- Power 7 KW
- Motor Reversible Yes
- Internal Tunnel Diameter 250 mm
- Weight 37 Kg
- Current Draw 540 A
- Continuous Operational Rating 4.5 minutes
- Maximum operating time 4.5 minutes
- Fuse type 'SLOW BLOW' 355 Amps
- Batteries 12 V, MIN./MAX. AH2x165 / 4x 165
- Battery Main Switch rating TYPE BPMAIN600 / 24
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIERS
PLEASE CONTACT US FOR SHIPPING
PRODUCT CODE BOW16024D
