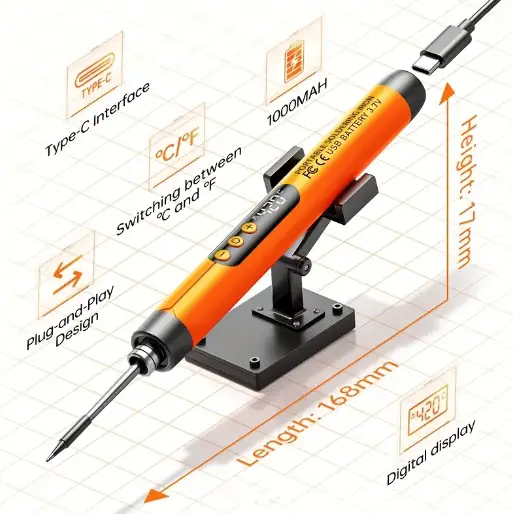

Cordless Soldering Iron Kit

Soldering Iron Five-level Temperature Adjustment

Features & Specifications
Model: TK-USB-DS
Power: 10W
Display Mode: LED
Lnput Voltage: DC 5V
Operating Current: 2A
Temperature Range: 200-420℃/392-788°F

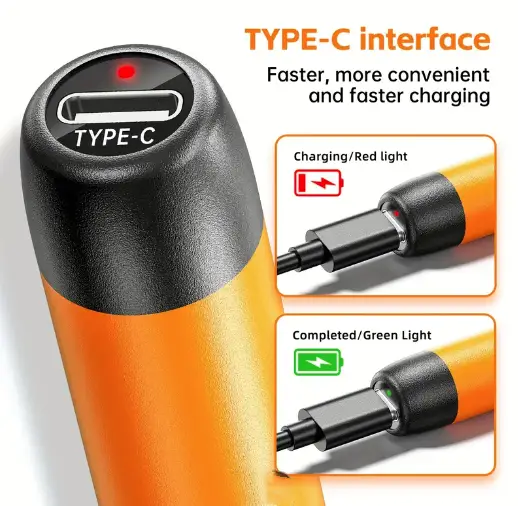

Interface Type-c
Charging Time: 1 Hour

Operation:
1. Power On: in the black screen or OFF state, press and holdthe power button for 3 seconds to enter heating mode.
2.Temperature Adjustment: Press the + and-buttons to set the temperature.
3.°C and °F Switching: in heating mode,double-click the power button to switch between °C and °F.

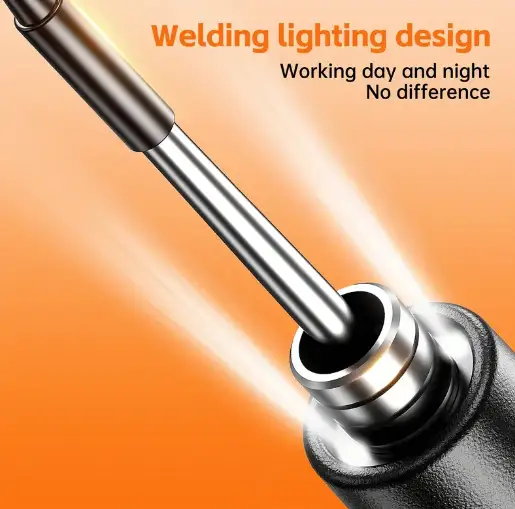

4. Spotlight On/Off: In the powered-on state, press and hold boththe + and -buttons for 3 seconds to turn off the light.
5. Sleep Function On/Off: in the OFF state, press and hold both the+ and . buttons for 3 seconds to enter the sleep function settings.(Default sleep time is 10 minutes, in sleep mode, the device willautomaticaily turn off after 5 minutes of inactivity.)
6. Low Battery Warning: when the battery voltage is at 2.9V,the screen will display "L-0".

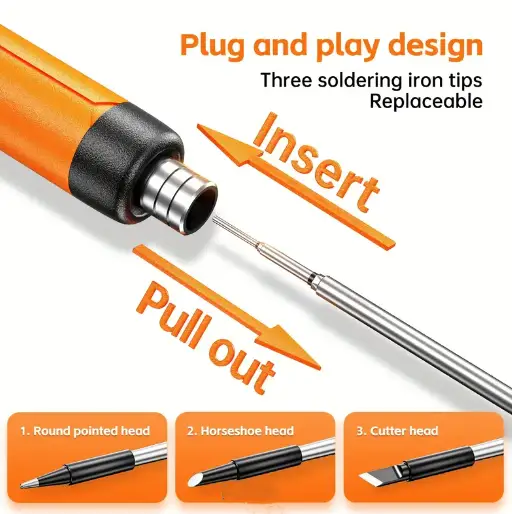

7. Heating Element insertion Reminder: lf the heating element is not inserted correctly, the screen will display "H-E".

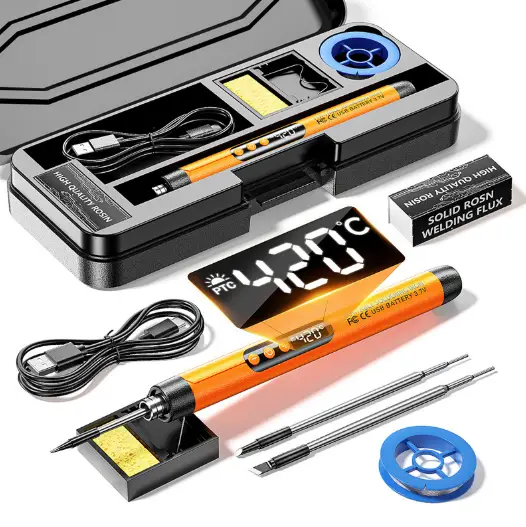

Package included:
Cordless Soldering Iron Kit
