Do35 V3plus No Handbrake 7/8 “ Tow Pin
Sent from NZ Supplier
Sent from NZ Supplier (3-4 Days)
Quantity:
Do35 V3plus No Handbrake 7/8 “ Tow Pin

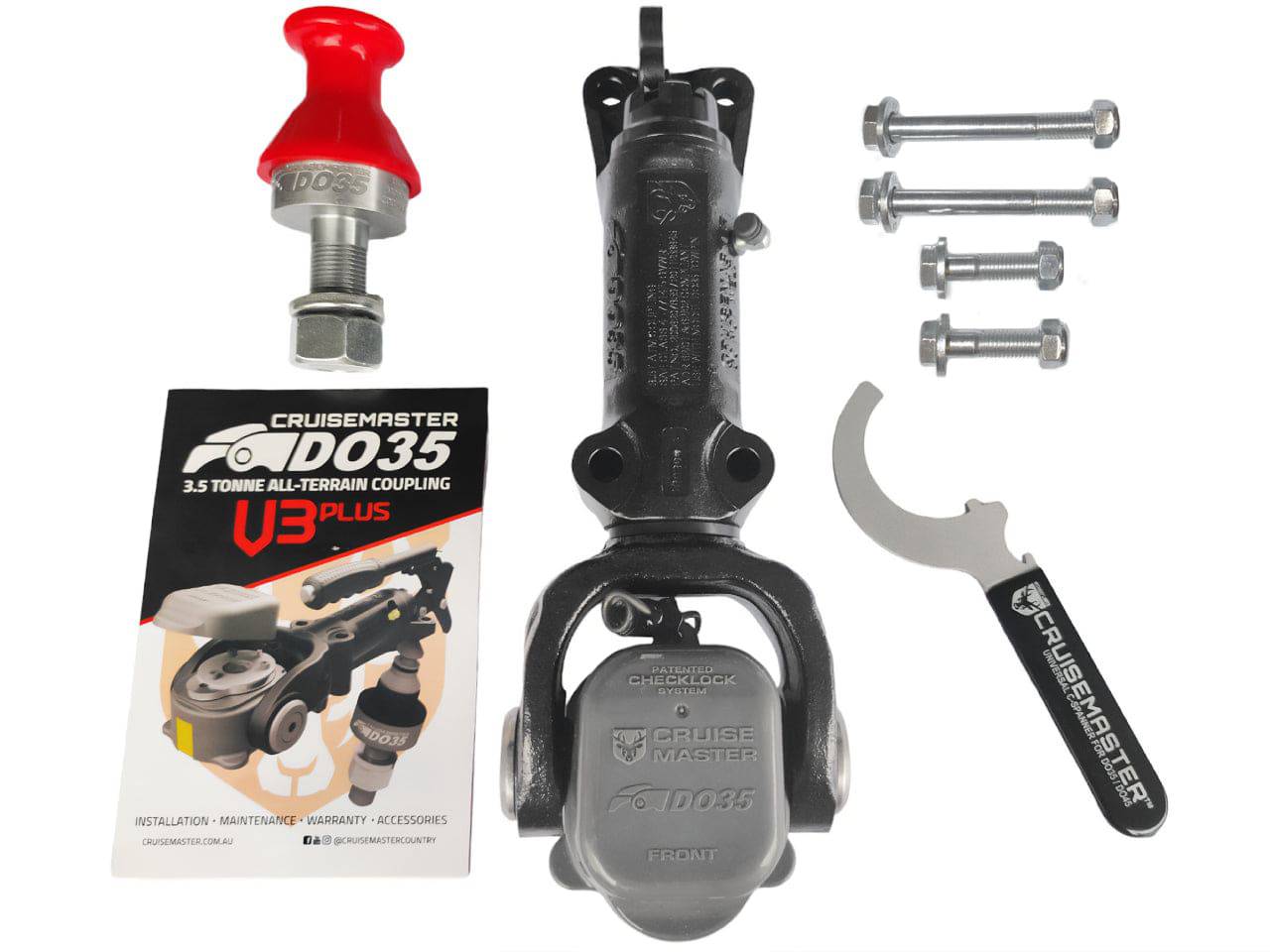

Item Includes
- DO35 V3Plus (No Handbrake)
- Tow Pin 7/8" Shaft
- Tow Pin Cover
- Universal C-Spanner
- Fitment Bolts
- User Guide
V3PLUS Exclusive Features
- Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
- Improved Bumper molding gives the from reflector strip improved staying power
- Rear support webbing allows for mounting upside down on the underside of the drawbar
Standard V3 Features
- 2 Stage ADR compliant locking mechanism
- Low profile Bumper & Cap for impressive clearance
- High articulation for improved handling off-road and on unmaintained roads
- Available with or without handbrake
- Suitable for use with most Weight Distribution System’s
- Forged Yoke and Rear Nut for added strength
- Exceeds ADR 62/01 and 62/02 strength requirements
- One piece light weight Cast Housing
- Standard Aus bolt pattern for easy fitment
- 7/8” shaft to fit most std. tow tongues
- Improved towing safety
- Combination of zn-ni and e-coat for superior corrosion protection
- Greaseable Bushes for easy maintenance and noise free towing
- No tow ball height restrictions
- R.A.T Run Tested and Proven
ARTICULATION |
360 degrees axial, minimum 70 degrees other axes. |
LOCKING | Fully ADR 62/02 compliant including automatic secondary lock |
BOLT PATTERN | 4 bolts at 185mm x 54mm |
RATING | 3.5 Tonne |
ACTION | Drop-On |
MAINTENANCE | Fully Greasable |
