Engine Temperature Monitoring

Prevent premature failure by gaining an entirely new view of your vessel’s mechanical system with the new FLIR AX8 thermal monitoring camera.

Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds.

Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR’s exclusive MSX® imaging blends visible and thermal images for more detailed imagery that is easier to understand.

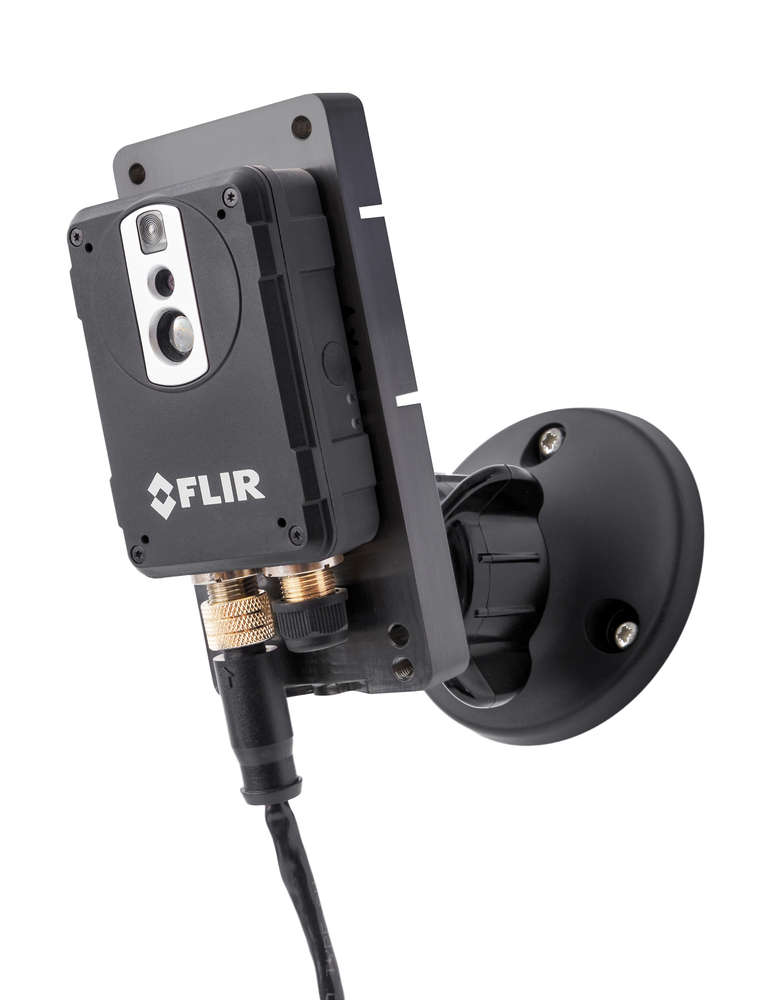

Digital and thermal cameras and LED illumination

• Compact housing 54mm (w) x 25mm (d) x 79mm (h) excluding connectors
• Ethernet connections
• POE injector and cooling plate included
• Optional ball and socket bracket mount
• On-Board Thermal Alarming and Visual Analysis
• Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery
• Program-specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds
• Evaluate ongoing temperature trends
• Help avoid costly repairs and unwanted breakdowns
• Connect up to eight AX8 cameras using Ethernet
• View and record thermal video and snapshots from any Raymarine display on the network
• Easy setup and alarm programming with a PC and web browser

Specifications

IMAGING and OPTICAL DATA

• IR Resolution- 80x60 pixels
• Thermal Sensitivity / NETDless than 0.10degrees C to 30C (86F) / 100mK
• Field of View-FOV-48degrees x 37degrees
• Focus: Fixed

DETECTOR DATA

• Detector TypeFocal Plane Array (FPA) Uncooled Microbolometer
• Spectral Range7.3-13µm

VISUAL CAMERA

• Built-in Digital Camera640x480
• Digital Camera FOVAdapts to the IR lens
• SensitivityMinimum 10 Lux without the illuminator

MEASUREMENT

• Object Temperature Range-10C to +150C (14F to 302F)
• Accuracy above/below 2C (3.6F) or above or below 2per cent of reading (10C to100C plus10 to plus 35amb)

MEASUREMENT ANALYSIS

• Spotmeter- 6
• Area: 6 Boxes with max. / min. / average
• Automatic Hot / Cold Detection: Max / Min temperature value and a position shown within the box
• Measurement Presets- Yes
• Atmospheric Transmission CorrectionAutomatic, based on inputs for distance, atmospheric temperature, and relative humidity
• Optics Transmission Correction- Automatic, based on signals from internal sensors
• Emissivity Corrections: Variable from 0.01 to 1.0
• Reflected Apparent Temperature Correction- Automatic, based on the input of reflected temperature
• External Optics / Windows Correction: Automatic, based on the input of optics/window transmission and temperature
• Measurement Corrections- Global Object Parameters

ALARM

• Alarm FunctionsAutomatic alarms on any selected measurement function. A maximum of 5 alarms can be set
• Alarm Output: Digital Out, store image, file sending (FTP), email (SMTP), notification

SET-UP

• Colour Palettes- (BW, BW inv, Iron, Rain)
• Set-up Commands- Data / Time, Temperature degrees C/F
• Web Interface- Yes

STORAGE OF IMAGES

• Storage Media: Built-in memory for internal storage
• Image Storage Mode: IR, Visual, MSX
• File Formats: Jpeg plus FFF

ETHERNET

• Ethernet: Control, result, and image
• Ethernet Type-100 Mbps
• Ethernet Standard- IEEE 802.3
• Ethernet Connector Type- M12 8-pin X-coded
• Ethernet Video Streaming- Yes
• Ethernet Power- Power over Ethernet, PoE IEEE 802.3as class 0
• Ethernet Protocols- Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)

MARINE ELECTRONICS INTERFACE

• Multifunction Displays: Network compatible with Raymarine LightHouse II multifunction displays

IMAGE STREAMING

• Image Streaming Formats: Motion JPEG, MPEG, H.264
• Image Streaming Resolution: 640x480
• Image Modes: Thermal, Visual, MSX (IR-image with enhanced detail presentation)
• Automatic Image Adjustment: Continuous

POWER SYSTEM (POE Injector)

• External Power Operations- 12/24VDC, 2W continuously / 3.1W absolute max
• External Power Connector- Screw Connection (12V/0V/Chassis)
• Voltage: Allowed Range 9-36VDC

ENVIRONMENT DATA

• Operating Temperature Range0C to +50C (32F to 122F)
• Storage Temperature Range–40C to +70C (–40F to 158F) IEC 68-2-1 and IEC 68-2-2
• Humidity (Operating and Storage)IEC 60068-2-30/24 h 95 per cent relative humidity 25C to 40C (+77F to 104F)/ 2 cycles
• EMCEN 61000-6-2-2001 (Immunity) | EN 61000-6-3-2001 (Emission) | FCC 47 CFR Part 15 Class B (Emission) | EN 60945-2002 | EN60945 (Electromagnetic Compliance)
• EncapsulationIP67 (IEC 60529)
• Bump25 g (IEC 60068-2-29)
• Vibration2 g (IEC 60068-2-6)
• EN 60945-2002
• Ignition ProtectionEN 28845:1993

PHYSICAL DATA

• Camera size (L × W × H)54 × 25 × 79 mm (2.1 x 1 x 3.1 in.) w/o connectors
• 54 × 25 × 95 mm (2.1 x 1 x 3.7 in.) w/ connectors
