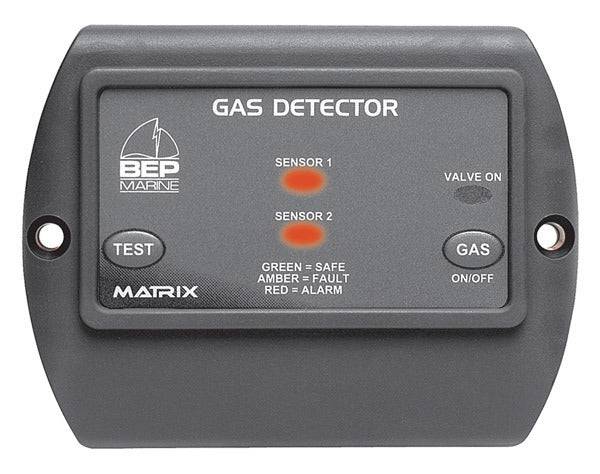

Gas Detector 600-GDL Valve Control

Gas Detector 600-GDL Valve Control Product Code 600-GDL Control two sensors which detect both LPG and Petrol

Gas Detector 600-GDL Valve Control

Control two sensors that detect both LPG and Petrol

Same capability as the 600-GD, with the additional ability to switch a valve on and off. The 600-GDL has a 'pulse and hold' feature which allows the solenoid valve to be opened, using full power and then reducing power to hold the valve in the open position. This reduces power consumption and heat generated whilst the valve is in the on position.

Features

• Operating Voltage 10 to 32 Volts DC
• Self testing capability
• Microprocessor control
• Visual and audio alarms
• Provision for external alarm
• Provision for bilge blower
• Supplied with one sensor; dual sensor capability

Specifications

Voltage 10V min to 32V max

Current Draw with two sensors Total 350mA max

Sensors supplied- 1

Alarm Sensitivity 20 per cent LEL [Lower Explosive limit]

Current at Outputs 800mA max

Solenoid Draw Pulse 700mA hold at 250mA

Dimensions 66.5[H] x 88[W] x 17mm [D]

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIER

NZ Code 600-GDL
