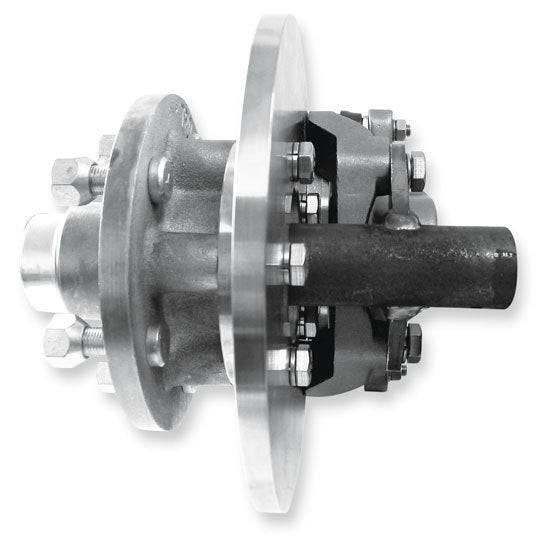

Hub and Stub Kit 2000kg D/B 6x5 1/2x1/2 - Designed to fit Trojan products but should fit most NZ trailer axles
Hub and Stub Kit 2000kg D/B 6x5 1/2x1/2
Features:
These non-braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
The Hubs have a 2000KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
The most common stud pattern 5 Stud with a PCD measurement 4 1/2 inch and fits our most commonly stocked rims and tyres.
The hub kits in this range have a disc rotor as an integral part of the cast iron hub or fitted with a bolt-on disc rotor in either cast iron or stainless steel.
The rotor diameters is 275mm and use our standard caliper sets which are sold separately.
There are a pair of 38mm round stub axles included with a built-in caliper mount.
Specifications:
Part No: |
Rotor Type: |
Stud: |
PCD diameter: |
Stud width: |
'x' in mm: |
|---|---|---|---|---|---|
T137135 |
Integral |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T137155 |
Integral |
6 |
5 1/2 inch |
1/2 inch |
82.118mm |
T138105 |
Cast Iron bolt on |
Blank |
|||
T138135 |
Cast Iron bolt on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T138140 |
Cast Iron bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
T138155 |
Cast Iron bolt on |
6 |
5 1/2 inch |
1/2 inch |
82.118mm |
T138305 |
Stainless steel bolt on |
Blank |
|||
T138335 |
Stainless steel bolt on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T138340 |
Stainless steel bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
T138355 |
Stainless steel bolt on |
6 |
5 1/2 inch |
1/2 inch |
82.118mm |
Pack Size: PR
Weight: 0kg
Note: There is a range of spare parts available for this product.
Products are sent from supplier and ships within 4-7 days
