Trojan

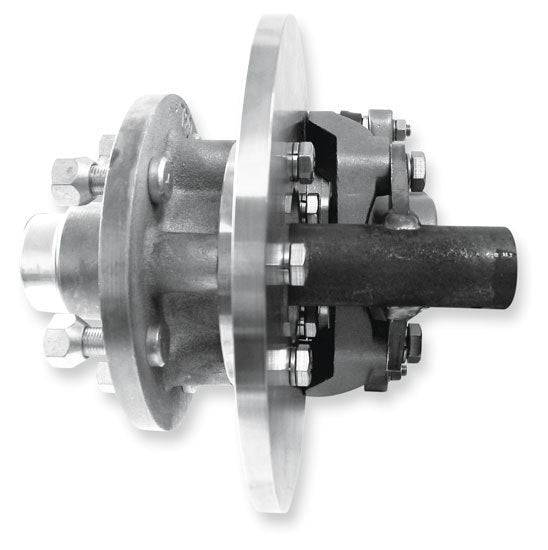

Hub and Stub Kit 275 CI Disc 5x4 1/2x1/2
Hub and Stub Kit 275 CI Disc 5x4 1/2x1/2
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
Hub and Stub Kit 275 CI Disc 5x4 1/2x1/2 - Designed to fit Trojan products but should fit most NZ trailer axles
Hub and Stub Kit 275 CI Disc 5x4 1/2x1/2
Features
- These non-braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
- The Hubs have a 2000KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
- Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
- The most common stud pattern 5 Stud with a PCD measurement 4 1/2 inch and fits our most commonly stocked rims and tyres.
- The hub kits in this range have a disc rotor as an integral part of the cast iron hub or fitted with a bolt-on disc rotor in either cast iron or stainless steel.
- The rotor diameters is 275mm and use our standard caliper sets which are sold separately.
- There are a pair of 38mm round stub axles included with a built-in caliper mount.
Specifications
Part No: |
Rotor Type: |
Stud: |
PCD diameter: |
Stud width: |
'x' in mm: |
---|---|---|---|---|---|
T137135 |
Integral |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T137155 |
Integral |
6 |
5 1/2 inch |
1/2 inch |
82.118mm |
T138105 |
Cast Iron bolt on |
Blank |
|||
T138135 |
Cast Iron bolt on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T138140 |
Cast Iron bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
T138155 |
Cast Iron bolt on |
6 |
5 1/2 inch |
1/2 inch |
82.118mm |
T138305 |
Stainless steel bolt on |
Blank |
|||
T138335 |
Stainless steel bolt on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T138340 |
Stainless steel bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
T138355 |
Stainless steel bolt on |
6 |
5 1/2 inch |
1/2 inch |
82.118mm |
Pack Size PR
Weight 28kg
Products are sent from suppliers and ships within 4-7 days
