Trojan
Hub and Stub Kits 1500kg Disc/B 5x4 1/2x1/2
Hub and Stub Kits 1500kg Disc/B 5x4 1/2x1/2
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand

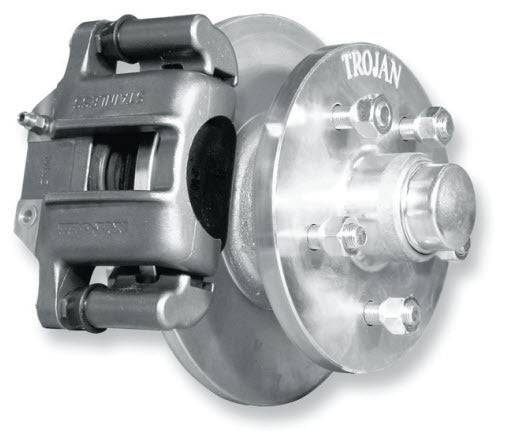

Hub and Stub Kits 1500kg Disc/B 5x4 1/2x1/2 - Designed to fit Trojan Duratorque and beam axles but should also fit most NZ trailer axles
Hub and Stub Kits 1500kg Disc Braked 5x4 1/2x1/2
Features
These braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
The Hubs have a 1500KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
The most common stud pattern is 5 Stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
The hub kits in this range include a full cast disc or a fitted bolt-on disc in either cast iron or stainless steel.
There are a pair of 38mm round stub axles included with a built-in calliper mount.
Brake callipers sold separately
Specifications
Part No: |
Rotor Type: |
Stud: |
PCD diameter: |
Stud width: |
'x' in mm: |
---|---|---|---|---|---|
T135105 |
Integral |
Blank |
|||
T135115 |
Integral |
4 |
4 1/4 inch |
7/16 inch |
108.6mm |
T135120 |
Integral |
4 |
4 1/2 inch |
7/16 inch |
114.3mm |
T135135 |
Integral |
5 |
4 1/4 inch |
7/16 inch |
63.449mm |
T135135 |
Integral |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T135140 |
Integral |
5 |
120mm |
7/16 inch |
70.535mm |
T136125 |
Cast Iron bolt-on |
5 |
4 1/4 inch |
7/16 inch |
63.449mm |
T136135 |
Cast Iron bolt on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T136140 |
Cast Iron bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
T136335 |
Stainless steel bolt-on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T136340 |
Stainless steel bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
Pack Size PR
Weight 20kg
Products are sent from suppliers and ships within 4-7 days
