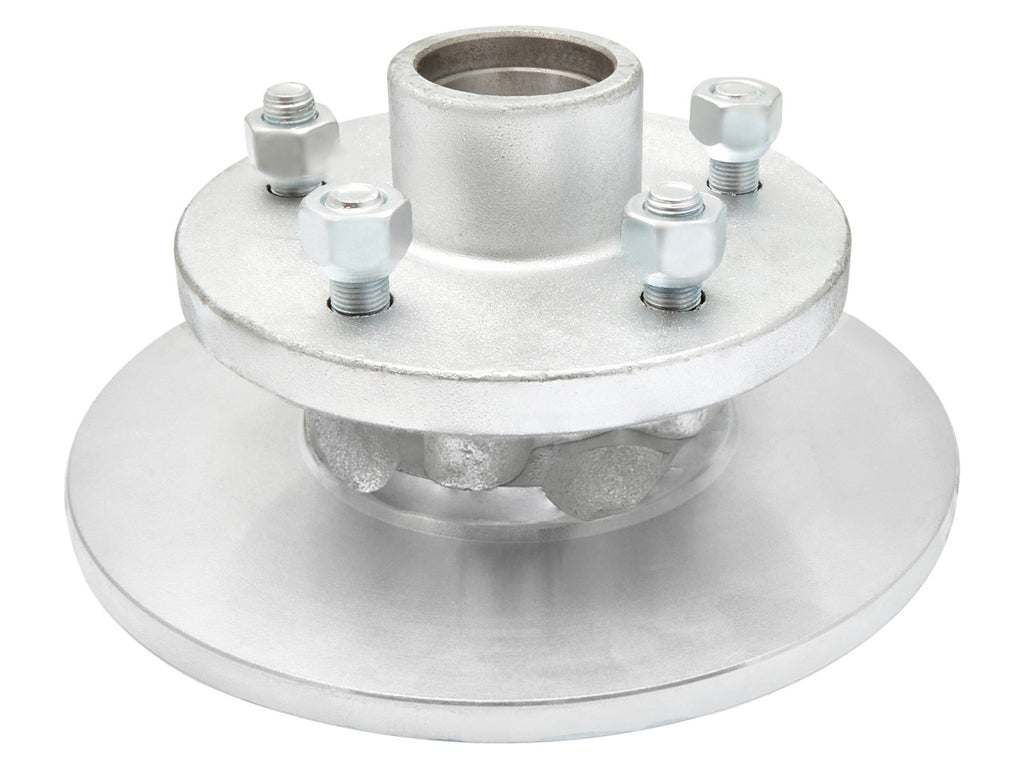

Hub and Stub Kits 225 SS Disc 5x120x7/16
Hub and Stub Kits 225 SS Disc 5x120x7/16
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
Hub and Stub Kits 225 SS Disc 5x120x7/16 - Designed to fit Trojan Duratorque and beam axles but should also fit most NZ trailer axles
Hub and Stub Kits 225 SS Disc 5x120x7/16
Features

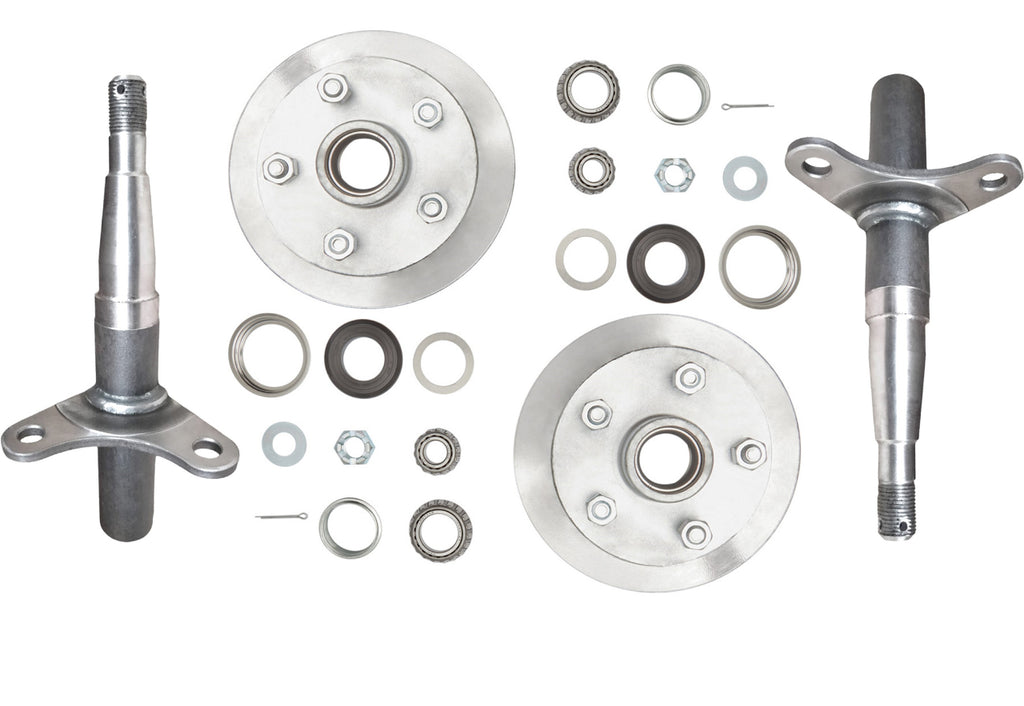

- These braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
- The Hubs have a 1500KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
- Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
- The most common stud pattern is 5 Stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
- The hub kits in this range include a full cast disc or a fitted bolt-on disc in either cast iron or stainless steel.
- There are a pair of 38mm round stub axles included with a built-in calliper mount.
- Brake callipers sold separately
Specifications
Part No: |
Rotor Type: |
Stud: |
PCD diameter: |
Stud width: |
'x' in mm: |
|---|---|---|---|---|---|
T135105 |
Integral |
Blank |
|||
T135115 |
Integral |
4 |
4 1/4 inch |
7/16 inch |
108.6mm |
T135120 |
Integral |
4 |
4 1/2 inch |
7/16 inch |
114.3mm |
T135135 |
Integral |
5 |
4 1/4 inch |
7/16 inch |
63.449mm |
T135135 |
Integral |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T135140 |
Integral |
5 |
120mm |
7/16 inch |
70.535mm |
T136125 |
Cast Iron bolt-on |
5 |
4 1/4 inch |
7/16 inch |
63.449mm |
T136135 |
Cast Iron bolt on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T136140 |
Cast Iron bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
T136335 |
Stainless steel bolt-on |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T136340 |
Stainless steel bolt on |
5 |
120mm |
7/16 inch |
70.535mm |
Pack Size PR
Weight 20kg
Note There is a range of spare parts available for this product.
Products are sent from suppliers and ships within 4-7 days
