Description

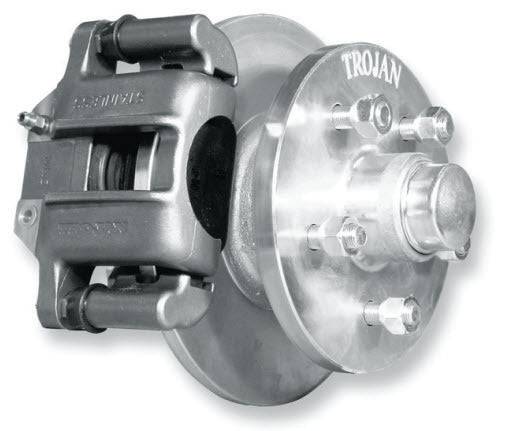

Hub and Stub Kits CI DISC 5X41/4X7/16 - Designed to fit Trojan Duratorque and beam axles but should also fit most NZ trailer axles
Hub and Stub Kits 1500kg Disc Braked 5x4 1/4x7/16
Features:
These braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
The Hubs have a 1500KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
The most common stud pattern 5 Stud with a PCD measurement 4 1/2 inch and fits our most commonly stocked rims and tyres.
The hub kits in this range include a full cast disc or a fitted a bolt on disc in either cast iron or stainless steel.
There are a pair of 38mm round stub axles included with a built-in caliper mount.
Brake calipers sold separately
Specifications:
Part No:  |
Rotor Type:  |
Stud:  |
PCD diameter:  |
Stud width:  |
'x' in mm:  |
|---|---|---|---|---|---|
T135105  |
Integral  |
Blank  |
|||
T135115  |
Integral  |
4  |
4 1/4 inch  |
7/16 inch  |
108.6mm  |
T135120  |
Integral  |
4  |
4 1/2 inch  |
7/16 inch  |
114.3mm  |
T135135  |
Integral  |
5  |
4 1/4 inch  |
7/16 inch  |
63.449mm  |
T135135  |
Integral  |
5  |
4 1/2 inch  |
1/2 inch  |
67.183mm  |
T135140  |
Integral  |
5  |
120mm  |
7/16 inch  |
70.535mm  |
T136125  |
Cast Iron bolt on  |
5  |
4 1/4 inch  |
7/16 inch  |
63.449mm  |
T136135  |
Cast Iron bolt on  |
5  |
4 1/2 inch  |
1/2 inch  |
67.183mm  |
T136140  |
Cast Iron bolt on  |
5  |
120mm  |
7/16 inch  |
70.535mm  |
T136335  |
Stainless steel bolt on  |
5  |
4 1/2 inch  |
1/2 inch  |
67.183mm  |
T136340  |
Stainless steel bolt on  |
5  |
120mm  |
7/16 inch  |
70.535mm  |
Pack Size: PR
Weight: 19kg
Note: There is a range of spare parts available for this product.
Products are sent from supplier and ships within 4-7 days
23/4/19-V
