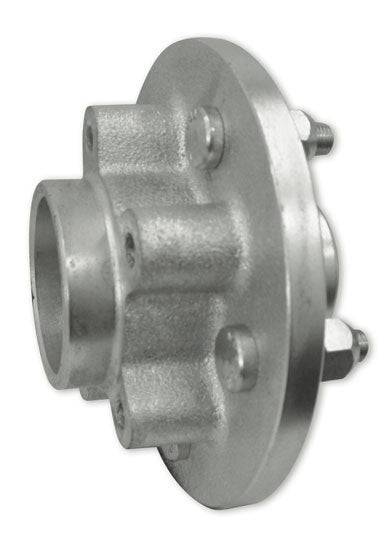

Hub Kit 5x120x7/16 1500kg Non Braked Bolt-on Rotor - N braked hub kits are designed to fit Trojan's Duratorque and beam axles
Hub Kit 2PC 5x120x7/16 1500kg Non-Braked Bolt-on Rotor
Features
- These non braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
- The Hubs have a 1500KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
- Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
- The most common stud pattern 5 Stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
- The hub kits in this range are able to fit a bolt-on disc but are supplied without a disc.
Hub Dimensions:
Hub Type: Disc Braked |
Version: |
Fig A: Outer Bore |
Fig B: Inner Bore |
Fig C: Flange Thickness |
Fig D: Flange Diameter |
Fig E: Width Overall |
|---|---|---|---|---|---|---|
1500kg (Spigot Type) |
Current Model |
45mm |
59mm |
11mm |
155mm |
97mm |
PCD Measurement
Part No: |
Stud |
PCD Diameter: |
Stud Width: |
'x' in mm |
|---|---|---|---|---|
T082140 |
5 |
120mm |
7/16 inch |
70.535mm |
1. The Flange Diameter is the outside diameter measurement of the hub face that the wheel is fitted.
The Following Upgrade bolt-on Brake components are compatible:
| Part No. | Description |
| TPT3110 | Cast iron rotor kit |
| TPT3111 | Stainless steel rotor kit |
| TPT1098 | Cast iron calliper kit |
| TPT1298 | Stainless steel calliper kit |
Pack Size- PR •
- Stub axles are not included.
- Allows upgrading to brakes at a later time.
- 5 stud drillings only.
Weight- 7kg
Spare Parts: T610140, T610135, T610125
Products are sent from suppliers and ships within 4-7 days
J - 25.03.22
