Hub Kit 5X120X7/16 CI Disc Braked 2000kg
Hub Kit 5X120X7/16 CI Disc Braked 2000kg
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
Hub Kit 5X120X7/16 275 CI Disc Braked 2000kg - Our range of hubs come in a wide variety of wheel stud patterns

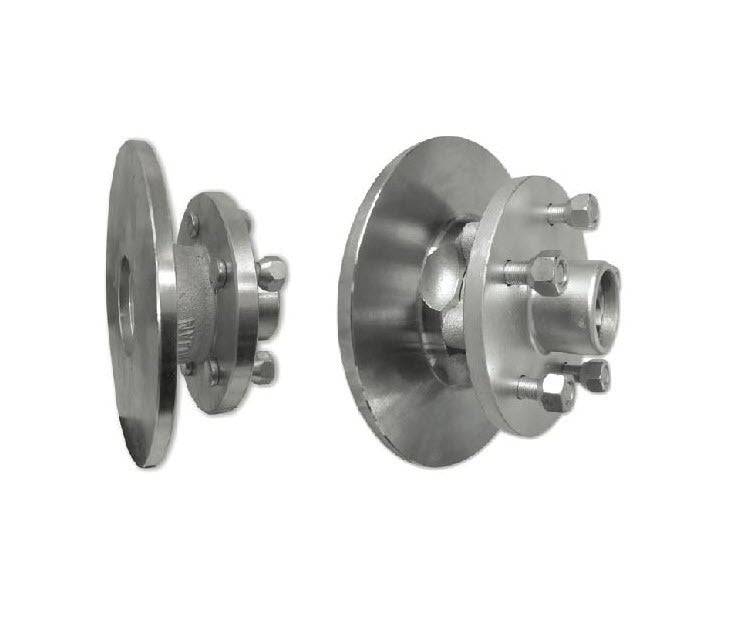

Hub Kit 5X120X7/16 275 CI Disc Braked 2000kg
Features:
These non braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
The Hubs have a 2000KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
The most common stud pattern 5 Stud with a PCD measurement 4 1/2 inch and fits our most commonly stocked rims and tyres.
The hub kits in this range have a disc rotor as an integral part of the cast iron hub or fitted with a bolt on disc rotor in either cast iron or stainless steel.
The rotor diameters is 275mm and use our standard caliper sets which are sold separately.
Hub Dimensions:
Hub Type:Disc Braked |
Version: |
Fig A:Outer Bore |
Fig B:Inner Bore |
Fig C:Flange Thickness |
Fig D:Flange Diameter |
Fig E:Boss Length |
Fig F:Rotor Diameter |
---|---|---|---|---|---|---|---|
2000kg |
Current Model |
45mm |
65mm |
15 mm |
220mm |
30mm |
275mm |
2000kg |
Early Model |
50mm |
65mm |
15mm |
220mm |
30mm |
275mm |
2000kg (Spigot Type) |
Current Model |
50mm |
65mm |
13mm |
190mm |
30mm |
275mm or 260mm |
Specifications:
Part No: | Stud: | PCD Diameter: | Stud Width: | 'x' in mm: |
---|---|---|---|---|
T038140 | 5 | 120mm | 7 1/2 inch | 70.535mm |
Pack Size: PR
Weight: 21kg
Note: There are a range of spare parts available for this product.
Products are sent from supplier and ships within 4-7 days
