Trojan

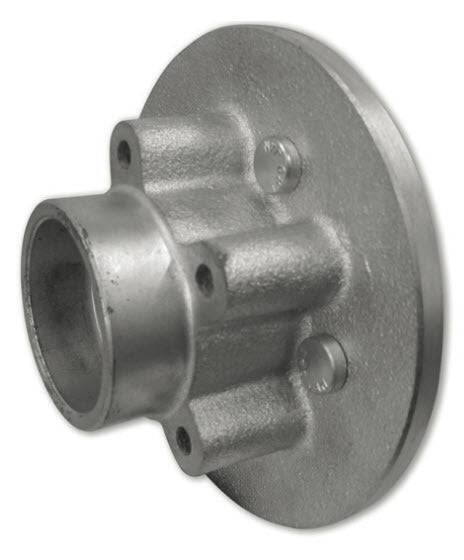

Hub Kit 5x41/2x1/2 Bolt on Rotor 2000kg
Hub Kit 5x41/2x1/2 Bolt on Rotor 2000kg
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
Hub Kit 5x41/2x1/2 Bolt on Rotor 2000kg - These non braked hub kits are designed to fit our Duratorque and beam axles
Hub Kit 2PC Non-Braked 5x41/2x1/2 Bolt-on Rotor 2000kg
Features
These non braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
The Hubs have a 2000KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
The most common stud pattern 5 Stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
The hub kits in this range are able to fit a bolt-on disc but are supplied without a disc.
Hub Dimensions
Hub Type: Disc Braked |
Version: |
Fig A: Outer Bore |
Fig B: Inner Bore |
Fig C: Flange Thickness |
Fig D: Flange Diameter |
Fig E:Overall Width |
---|---|---|---|---|---|---|
2000kg |
Early Model |
45mm |
65mm |
17 mm |
220mm |
90mm |
2000kg |
Current Model |
50mm |
65mm |
17mm |
220mm |
90mm |
2000kg (Spigot Type) |
New Model |
50mm |
65mm |
13mm |
190mm |
110mm |
PCD Measurement
Part No. |
Studs |
PCD Diameter |
Stud width |
'x' in mm |
---|---|---|---|---|
T083135 |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
T083140 |
5 |
120mm |
7/16 inch |
70.535 |
T083155 |
6 |
5 1/2 inch |
1/2 inch |
82.118mm |
1. The Flange Diameter is the outside diameter measurement of the hub face that the wheel is fitted
The Following Upgrade bolt-on Brake components are compatible
Part No. |
Description |
---|---|
TPT3112 |
Cast iron rotor kit |
TPT3113 |
Stainless steel rotor kit |
TPT1098 |
Cast iron calliper kit |
TPT1298 |
Stainless steel calliper kit |
• Allows upgrade to brakes at a later time
• Fitted with heavy-duty bearings
• 5 or 6 stud drillings only
• Stub axle not included
Note: There is a range of spare parts available for this product.
Products are sent from suppliers and ships within 4-7 days
J - 25.03.22
