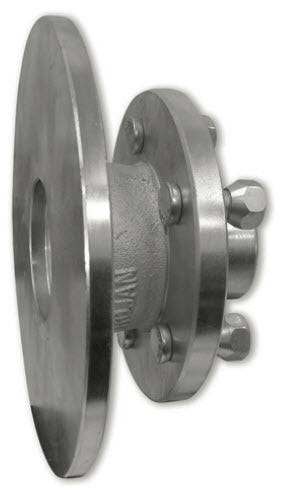

Hub Kit 5x41/2x1/2 Disc Braked 1750kg - These hubs have a 1750KG GVM [Gross Vehicle Mass] load rating.
Hub Kit 5x41/2x1/2 Disc Braked 1750kg
Features
These braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
The Hubs have a 1750KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
The hub kit only comes with one stud pattern of 5 Stud with a PCD measurement of 4 1/2 inches and stud width of 1/2 inch.
The hub is a full cast disc rotor.
Dimensions
Part No: |
Rotor Type |
Stud: |
PCD Diameter: |
Stud Width: |
'x' in mm: |
|---|---|---|---|---|---|
T085135 |
Integral |
5 |
4 1/2 inch |
1/2 inch |
67.183mm |
- • Stub axles are not included
- • Heavy-Duty bearings
- • Common wheel drilling
- Note: There is a range of spare parts available for this product.
