Trojan

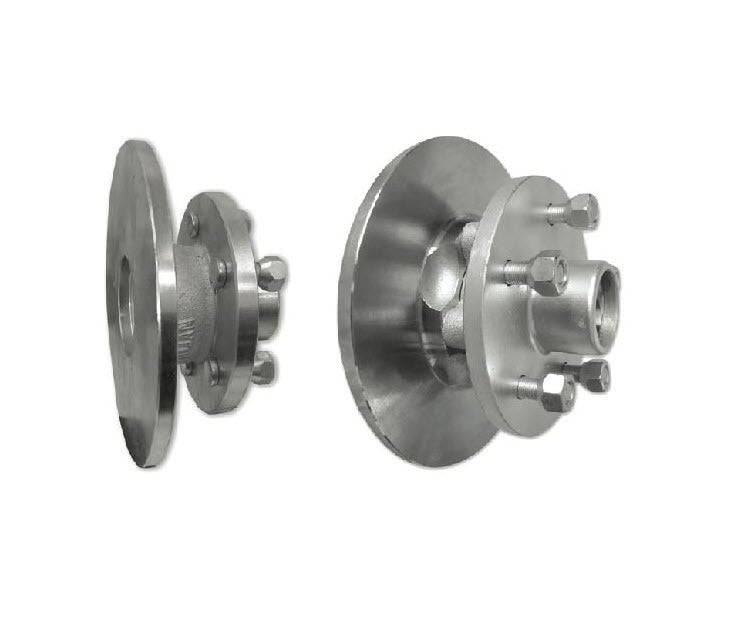

Hub Kit 6X51/2X1/2 SS Disc Braked 2000kg
Hub Kit 6X51/2X1/2 SS Disc Braked 2000kg
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand
Hub Kit 6X51/2X1/2 275 SS Disc Braked 2000kg - Our range of hubs come in a wide variety of wheel stud patterns
Hub Kit 6X51/2X1/2 275 SS Disc Braked 2000kg
Features
- These non braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
- The Hubs have a 2000KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
- Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
- The most common stud pattern is 5 Stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
- The hub kits in this range have a disc rotor as an integral part of the cast-iron hub or are fitted with a bolt-on disc rotor in either cast iron or stainless steel.
- The rotor diameters are 275mm and use our standard calliper sets which are sold separately.
Hub Dimensions
Hub Type: Disc Braked |
Version: |
Fig A: Outer Bore |
Fig B: Inner Bore |
Fig C: Flange Thickness |
Fig D: Flange Diameter |
Fig E: Boss Length |
Fig F: Rotor Diameter |
---|---|---|---|---|---|---|---|
2000kg |
Current Model |
45mm |
65mm |
15 mm |
220mm |
30mm |
275mm |
2000kg |
Early Model |
50mm |
65mm |
15mm |
220mm |
30mm |
275mm |
2000kg (Spigot Type) |
Current Model |
50mm |
65mm |
13mm |
190mm |
30mm |
275mm or 260mm |
Specifications
Part No: | Stud: | PCD Diameter: | Stud Width: | 'x' in mm: |
---|---|---|---|---|
T038355 | 5 | 4 1/2 inch | 1/2 inch | 67.183mm |
Pack Size: PR
Weight: 20kg
Note: There is a range of spare parts available for this product.
