Hub Kit Non-Braked 6x5 1/2x1/2 190HUB
Quantity:
Pickup available at Action Outdoors Shop
Usually ready in 24 hours
Hub Kit Non-Braked 6x5 1/2x1/2 190HUB
Action Outdoors Shop
Pickup available, usually ready in 24 hours
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand

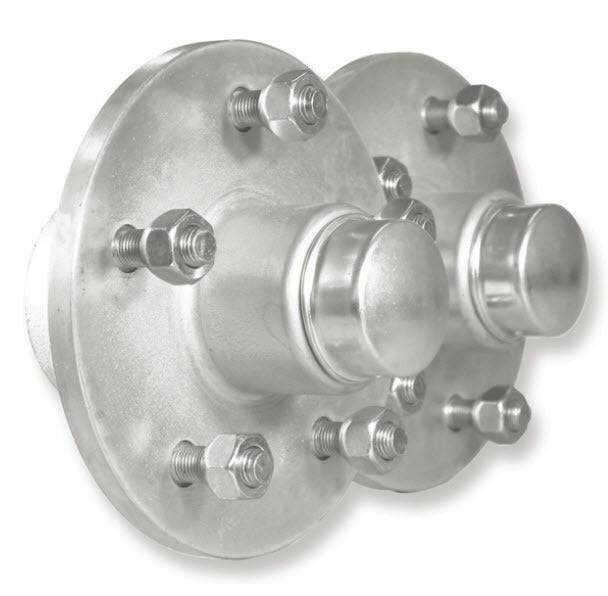

Hub Kit Non-Braked 6x5 1/2x1/2 190HUB - These non-braked hub kits are designed to fit any of our custom axles
Hub Kit Non-Braked Standard 1500kg 6x5 1/2x1/2 190HUB
Non braked hub kits to fit any of our custom axles
Hub Dimensions:
Hub Type: Non Braked |
Version: |
Fig A: Outer Bore |
Fig B: Inner Bore |
Fig C: Flange Thickness |
Fig D: Flange Diameter |
Fig E: Overall Width |
|---|---|---|---|---|---|---|
1500kg |
Early Model |
45mm |
59mm |
18 mm |
175mm |
87mm |
1500kg |
Early Model |
45mm |
59mm |
11mm |
140mm |
97mm |
Measurement of stud patterns.
Part No. |
Studs |
PCD diameter |
Stud width |
Flange diameter |
'x' in mm |
|---|---|---|---|---|---|
T084055 |
6 |
5 1/2inch |
1/2inch |
190mm |
139.7mm |
The Flange Diameter is the outside diameter measurement of the hub face that the wheel is fitted.
- • Stub axles are not included.
- • Wide range of wheel drilling available.
- • 3 flange diameters for various wheel diameters.
Specifications
- The Hubs have a 1500KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
- The most common stud pattern is 5 stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
- This range of hubs is not able to fit with a bolt-on disc rotor.
- Pack Size: PR
- Weight: 9kg
- Note: There is a range of spare parts available for this product.
Products are sent from suppliers and ships within 4-7 days
