Trojan
Hub Kit Non-Braked Blank 1500kg
Hub Kit Non-Braked Blank 1500kg
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand

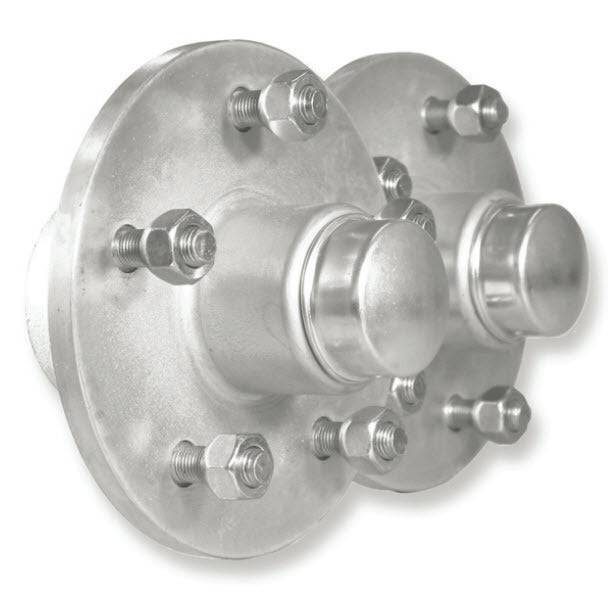

Hub Kit Non-Braked Blank 1500kg - These non-braked hub kits are designed to fit any of our custom axles
Hub Kit Non-Braked Blank 1500kg
Non-Braked Hub Kits to fit any of our Custom Axles
Hub Dimensions
Hub Type Non-Braked |
Version |
Fig A Outer Bore |
Fig B Inner Bore |
Fig C Flange Thickness |
Fig D Flange Diameter |
Fig E Overall Width |
---|---|---|---|---|---|---|
1500kg |
Early Model |
45mm |
59mm |
18 mm |
175mm |
87mm |
1500kg |
Early Model |
45mm |
59mm |
11mm |
140mm |
97mm |
Measurement of stud patterns
Part No. |
Studs |
PCD diameter |
Stud width |
Flange diameter |
'x' in mm |
---|---|---|---|---|---|
T082005 |
Blank |
155mm |
The Flange Diameter is the outside diameter measurement of the hub face that the wheel is fitted.
- Stub axles are not included.
- A wide range of wheel drilling is available.
- 3 flange diameters for various wheel diameters.
Specifications
- The Hubs have a 1500KG GVM [Gross Vehicle Mass] load rating which is based on a single axle and a pair of hubs.
- The most common stud pattern is 5 stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tyres.
- This range of hubs is not able to fit with a bolt-on disc rotor.
- Pack Size PR
- Weight 6kg
Note: There is a range of spare parts available for this product.
