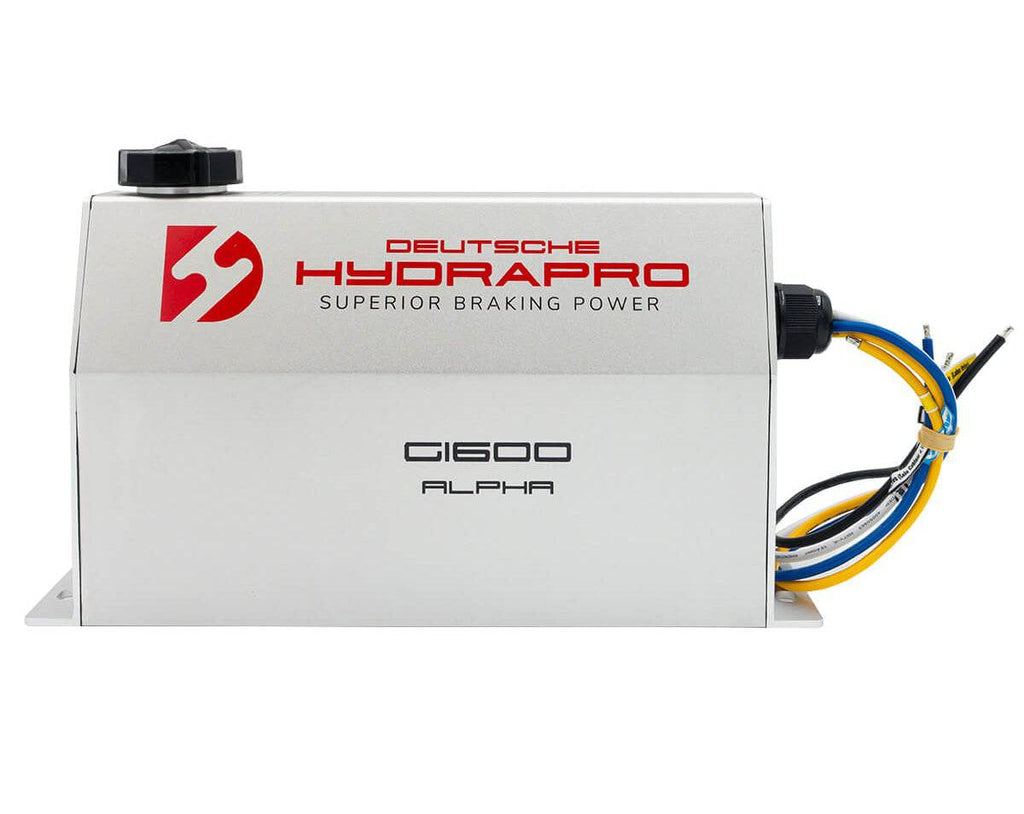

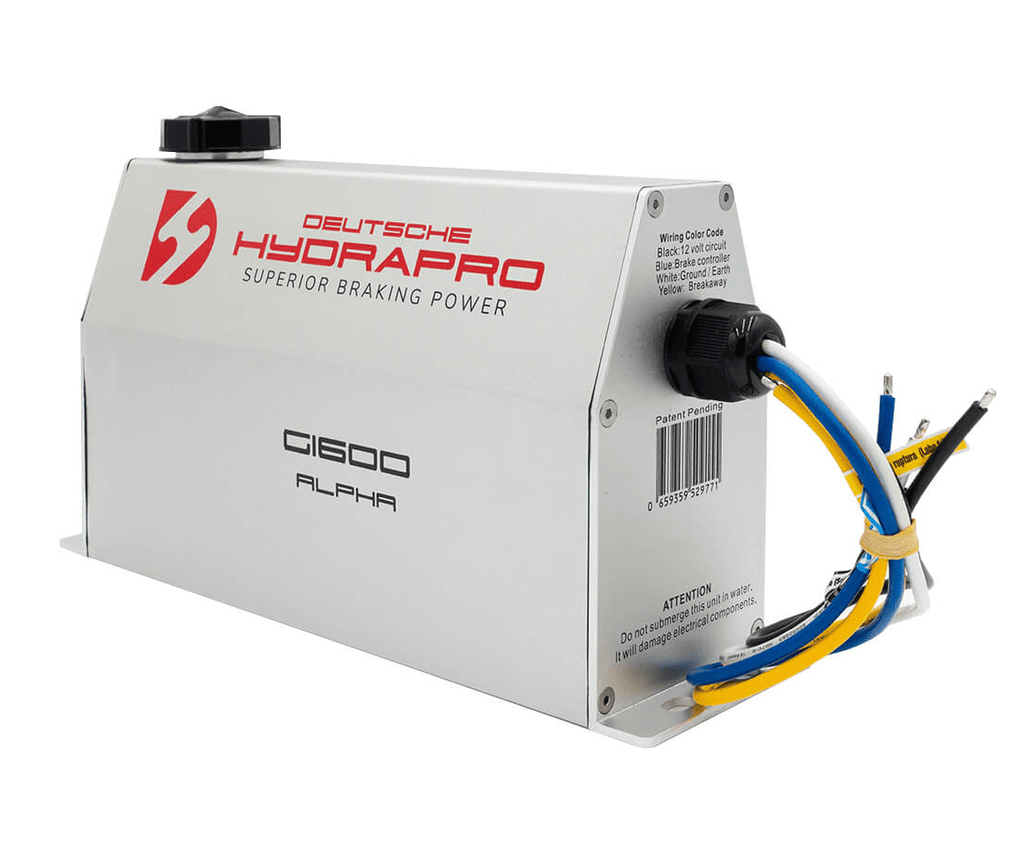

Hydrapro Alpha G1600

HYDRAPRO ALPHA G1600

All Deutsche Hydrapro 1600psi brake actuators have a swift response time, reaching 1000psi in 0.184 seconds.

Best used with DISC BRAKES

Features:

• This device has an in-built compatibility adapter, so no external compatibility device is necessary.
• High-powered DC motor and quality pump with minimal moving parts.
• Weatherproof, anodized alloy case protects components from external elements (such as saltwater, extreme temperatures, and poor road conditions).
• Anodized, T6-grade extruded alloy housing protects from different environments and has a great aesthetic design.
• Independently sealed fluid tank.
• Conformal coating on the circuit board is designed to provide extra protection from moisture.
• Two-year no-hassle warranty.

Specs:

• DOT Compliant
• Trailer Mounted
• Application: Disk brakes for single, tandem, tri, and quad axel trailers
• Distance between mounting holes: 278mm & 35mm (10.95” & 1.38”)
• Mounting Hole Diameter 12 x 8 mm (1.2cm x 0.8cm) slot
• Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting)
• Dot 4 Brake Fluid
• Fluid Capacity of 15.7 oz
• Power: 12V DC (min 30 amp circuit)
• Max Current Draw at full pressure approximately 18-24 amps.

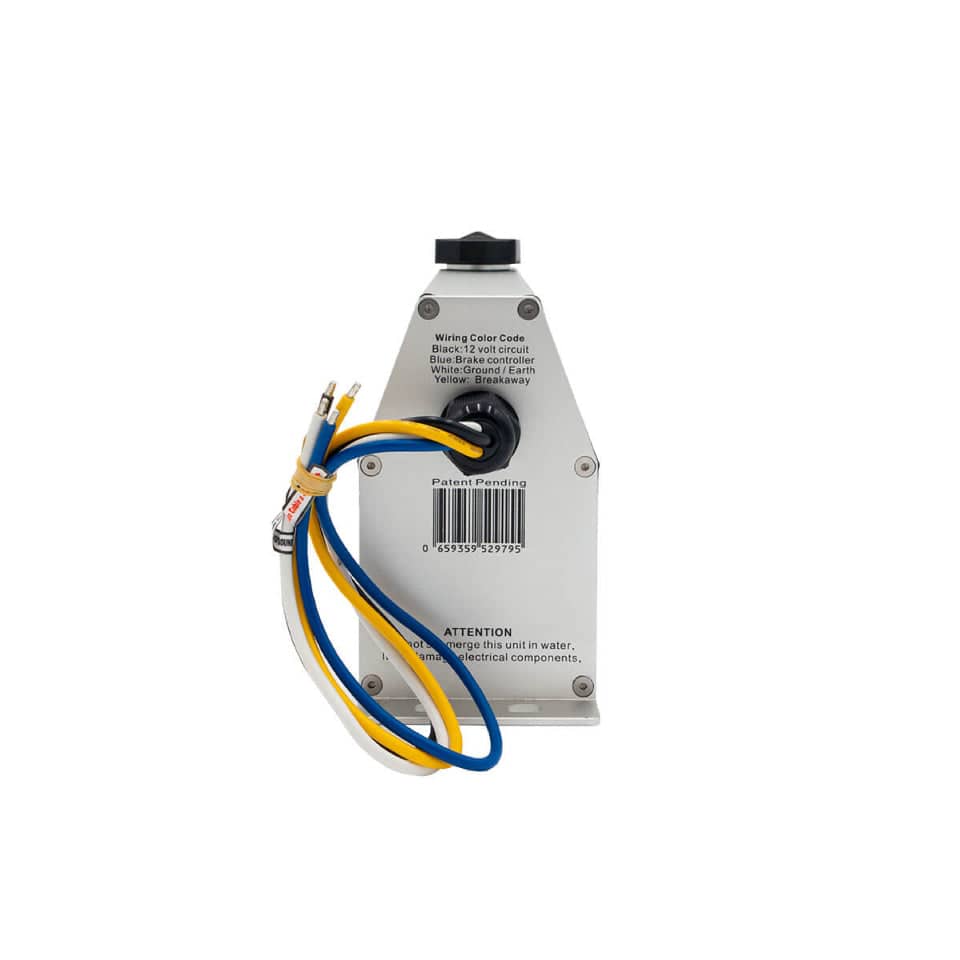

• Wire Configuration:
  • Black: 12-volt power
  • Blue: brake controller
  • Yellow: breakaway
  • White: ground
• Wire Gauge Recommendation
  • A minimum of 10 gauge on black and white
  • A minimum 12 gauge on blue and yellow
• Dimensions:
  • Length: 255mm (10”)
  • Height: 152mm (6”)
  • Width: 90mm Base / 44mm Top (3.6” Base /1.7” Top)
  • Mounting centres: 275mm L and 40mm W (10.9” and 1.6”)
