Kilwell Sports Ltd

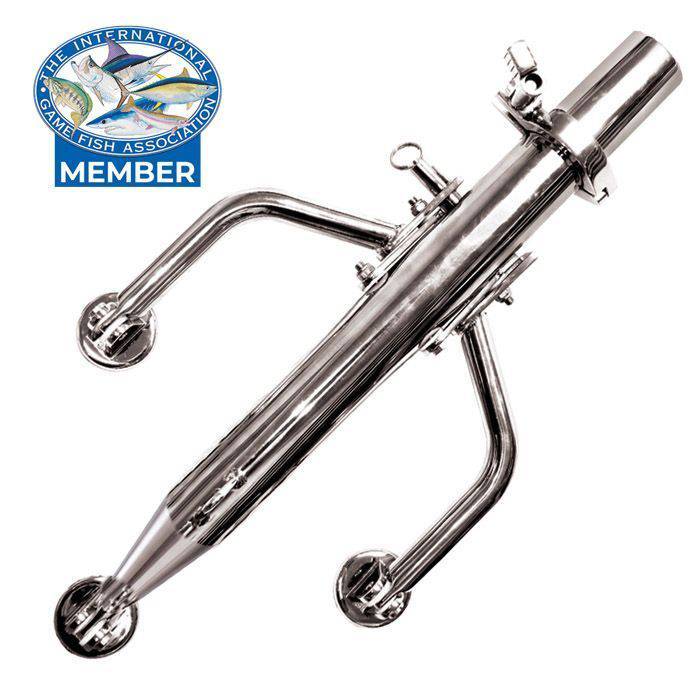

Kilwell Outrigger Base Slimline with gaskets
Sent from NZ Supplier (1-2 Days)
Kilwell Slimline Outrigger bases are made from stainless steel, are easy to operate, rugged and dependable,
Kilwell Slimline Outrigger bases are made from stainless steel, are easy to operate, rugged and dependable,
Features
Kilwell Slimline Outrigger bases are made from stainless steel, are easy to operate, rugged and dependable,
with trouble-free performance when laying out for fishing.
The bases feature a slimline tapered main tube with concealed bolts in the mounting bases and a locking
pivot arm to stop the outriggers from flopping about when deployed.
In the box are a pair of Slimline Outrigger bases designed to fit Port and Starboard, upright clamps to hold
the outriggers upright when motoring, and gaskets to protect against corrosion if fitting to an aluminium hull.
Stainless Steel bolts are included, enabling easy mounting to most boats.
Supplied with mounting gaskets (6)
When in the fixed deployed position, the outrigger base will lay at an approximate angle of 70 degrees from vertical.
* All stainless steel construction
* Nylon washers and gaskets in joints to prevent binding and corrosion.
* Slimline tapered main tube with 41.5mm internal diameter
* Index pin on pivot arm locks bases into the deployed position
* Supplied with a single 8mm bolt on each foot for easy setup
* Port and Starboard design
* Shackle loop on the main tube
* The footprint required for the three base fixings is approx 28cm width x 18cm height.
* Rated for up to 6.1m Kilwell Powerpole Carbon Outrigger poles.
Kilwell Powerpole outriggers are designed to drop straight into these bases and are removable for storage.
* Standard Powerpole length 4.6m.
* Spigot joint extensions are available to extend out to 6.1m.
* Available in Spiraflex or 12K Carbon finish
Kilwell Slimline Outrigger bases are sold as a pair. (2)
Like all Kilwell Branded products, these have a Kilwell Limited Lifetime Warranty.
