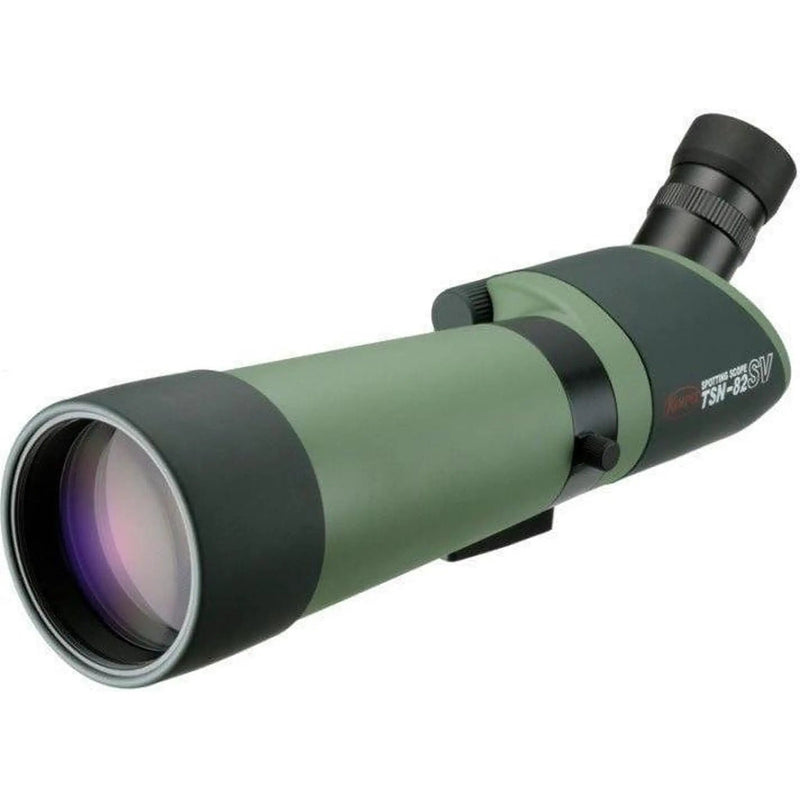

Kowa TSN-82SV 82mm Spotting Scope With 20-60x Eyepiece
The Kowa TSN-82SV series centers a bright, large-aperture 82mm objective into a rugged, field-ready platform. With a fully multi-coated optical path and dust-proof internals, this spotter maintains sharpness and contrast from edge to edge across the entire eyepiece range, delivering clear detail even on distant subjects.
Bright, reliable optics for every condition
Boasting an 82mm objective, the TSN-82SV captures more light for vivid, high-contrast images in challenging light. The combination of high-quality lenses and optics ensures crisp edges and natural color across the field of view, so you never miss subtle plumage, texture, or distant silhouettes.
Durable, weather-ready build
Encased in a rugged, olive-drab polycarbonate body, the TSN-82SV is built to withstand real-world outdoor use. It is fully sealed and nitrogen-filled to prevent fogging inside the optics, ensuring dependable performance in rain, mist, or cool early mornings.
Included eyepiece: 20-60x zoom with the TE-9Z
The TE-9Z eyepiece is designed to preserve optical quality across its 20-60x magnification range, giving you the versatility to survey wide scenes or zoom in for meticulous detail. This eyepiece is purpose-built to pair with the TSN-82SV, maintaining sharpness and clarity throughout the zoom range.
Digiscoping compatibility for telephoto capture
With the standard accessory collar, you can quickly attach Kowa digiscoping adapters to connect DSLR or mirrorless cameras, compact system cameras, and even smartphones. The combination unlocks true telephoto capability, enabling high-quality distant imagery without sacrificing portability.
Field-ready handling
An intentionally large, responsive focus wheel gives you precise control in the field, while the overall balance and rugged construction reduce fatigue during long sessions. The scope is designed for outdoor use, making it a reliable companion for birding, wildlife observation, and landscape study.
Why choose the TSN-82SV
- Outstanding light-gathering power from an 82mm objective for bright, detailed images in low light
- Dust-proof, fully multi-coated optics for sharpness across the entire image
- Weather-ready build: waterproof, nitrogen-filled, and rugged enough for harsh environments
- TE-9Z 20-60x zoom eyepiece included, preserving optical quality across magnifications
- Digiscoping-ready with easy-to-connect adapters for DSLR, mirrorless, and smartphone photography
- Comfortable, field-friendly operation with a large focus wheel and balanced design
What you get and who it's for
Designed for beginners stepping into professional-grade optics and adventurers who demand reliable, capable performance in real-world conditions, the TSN-82SV delivers premium brightness, clarity, and versatility in a compact, durable package. Its combination of robust build, excellent light gathering, and digiscoping readiness makes it a standout choice in its class.
| Waterproof | Robust |
![]() Large Objective | ![]() Low Light Performance |
![]() Multi-Coated Optics | ![]() Great Value |
| What's in the Box | |
|---|---|
| Item | Details |
| Kowa TSN-82SV Angled Spotting Scope Body | 82mm angled spotting scope body with fully multi-coated optics and lightweight polycarbonate construction. |
| 20–60x Zoom Eyepiece | Variable magnification eyepiece for scanning at lower power and detailed long-range viewing at higher power. |
| Objective Lens Cap | Protects the front 82mm objective lens during storage and transport. |
| Eyepiece Mount Cap / Bayonet Cap | Protects the eyepiece mount area when the eyepiece is not attached. |
| Instruction Manual | Covers setup, focusing, eyepiece attachment, tripod mounting, care, cleaning, storage, and safety guidance. |
| General Specifications | |
|---|---|
| Specification | Detail |
| Brand | Kowa |
| Model | TSN-82SV |
| Product Type | Spotting scope |
| Body Design | Angled |
| Construction | Lightweight polycarbonate body |
| Colour | Green / Black |
| Waterproof | Yes, waterproof to JIS Protection Class 7 |
| Fogproof | Yes, filled with dry nitrogen gas to help prevent internal fogging |
| Underwater Use | Not intended for underwater use |
| Optical Specifications | |
|---|---|
| Specification | Detail |
| Objective Lens Diameter | 82mm |
| Objective Lens Type | Normal optical glass |
| Lens Coating | Fully multi-coated lenses |
| Prism Type | Flat, wide Porro prism design |
| Minimum Focusing Distance | 6.0m / 19.7ft |
| Filter Thread | 86mm |
| Filter Compatibility | Commercially available filters can be mounted when matching the 86mm thread. |
| Included Eyepiece | 20–60x zoom eyepiece |
| Eyepiece Mount | Bayonet type |
| Included 20–60x Zoom Eyepiece | |
|---|---|
| Specification | Detail |
| Eyepiece Type | Zoom eyepiece |
| Magnification Range | 20x to 60x |
| Lower Magnification Use | Useful for scanning, locating subjects, tracking movement, and reducing image shake. |
| Higher Magnification Use | Useful for long-range identification, target spotting, and detailed viewing when tripod-mounted. |
| Mounting Style | Bayonet-style attachment |
| Optional Eyepiece Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| Eyepiece | Magnification | Type | Exit Pupil | Relative Brightness | Twilight Factor | Eye Relief | Field of View at 1,000m / 1,000yds |
| TE-9Z | 21–63x | Zoom | 3.9–1.3mm | 15.2–1.7 | 41.5–71.9 | 16.5–16mm | 31–17m / 102–56ft |
| TE-14WD | 32x | Wide | 2.6mm | 6.8 | 51.2 | 20mm | 38m / 125ft |
| TE-17HD | 27x | Long Eye Relief | 3.0mm | 9.0 | 47.1 | 32mm | 35m / 115ft |
| Physical Specifications | |
|---|---|
| Specification | Detail |
| Length | 383mm / 15.1in |
| Weight, Body Only | 1490g / 52.6oz approx. |
| Weight with Eyepiece | Approx. 1724g, depending on eyepiece fitted |
| Tripod Mount | Standard 1/4-inch tripod thread |
| Focus Mechanism | Central focus wheel / focus knob |
| Sunshade | Sliding / twist-out sunshade |
| Rotating Base | Rotating tripod mount with lock screw for positioning the angled body at different viewing angles. |
| Body Features & Operation | |
|---|---|
| Feature | Detail |
| Angled Viewing Body | Comfortable for extended viewing, raised tripod positions, seated use, and shared viewing between users of different heights. |
| Sighting Tube | Helps locate the subject before looking through the eyepiece. |
| Bayonet Eyepiece Mount | Allows compatible eyepieces to be attached and removed securely and easily. |
| Focus Knob | Smooth central focusing. Clockwise for far focus and counter-clockwise for close focus. |
| Sliding Sunshade | Helps protect the objective lens from rain and helps reduce direct sunlight entering the scope. |
| Dust Protection Glass | Protects the spotting scope body from dust and moisture when changing or removing eyepieces. |
| Rotating Tripod Mount | Allows the scope body to be rotated to different angles while mounted on a tripod. |
| Lock Screw | Loosen to rotate the scope body, then tighten to secure the chosen viewing angle. |
| Optional Accessories | |
|---|---|
| Accessory | Purpose / Compatibility |
| C-821 Stay-On Case | Protective stay-on case for the TSN-82SV angled spotting scope. |
| TE-9Z Eyepiece | 21–63x zoom eyepiece option. |
| TE-14WD Eyepiece | 32x wide-angle eyepiece option. |
| TE-17HD Eyepiece | 27x long-eye-relief eyepiece option. |
| TSN-DA1 | Digital camera adapter for compatible digiscoping setups. |
| TSN-DA4 | Universal camera adapter for compatible compact digital cameras. |
| TSN-AR Adapter Rings | Adapter rings selected according to camera filter thread size. |
| TSN-AR42GT | SLR camera adapter ring used in compatible TSN-82SV digiscoping and camera systems. |
| TSN-PA8 | Photo adapter option for compatible digital SLR camera use. |
| Digiscoping & Camera Compatibility | |
|---|---|
| System / Accessory | Detail |
| Digiscoping Support | The TSN-82SV can be used for digiscoping with optional Kowa camera adapters, adapter rings, and compatible cameras. |
| Compact Digital Camera Use | Compatible setups generally suit compact digital cameras with approximately 3–5x zoom, depending on adapter and camera dimensions. |
| Universal Camera Adapter | The TSN-DA4 allows compatible compact digital cameras to be mounted, including cameras without filter threads. |
| Viewing / Photography Switching | Compatible adapter systems allow easier switching between normal viewing and photography. |
| Care, Cleaning & Storage | |
|---|---|
| Area | Recommendation |
| Lens Dust Removal | Use a blower, can of air, or soft oil-free brush before wiping optical surfaces. |
| Fingerprints / Oil | Use lens cleaning paper or cloth lightly moistened with lens cleaning fluid. Wipe gently from the centre outward. |
| Body Cleaning | Remove dust with a blower or soft cloth. Avoid solvents such as acetone, benzene, paint thinner, or organic solvent cleaners. |
| After Rain Use | Dry the scope before storage to help prevent stains, moisture marks, or mould growth. |
| Storage | Store in a dry place with lens caps attached. Avoid high humidity and extreme temperatures. |
| Long-Term Storage | Store in an airtight container with desiccant if storing for extended periods. |
| Safety Notes | |
|---|---|
| Warning / Caution | Detail |
| Do Not View the Sun | Never look at the sun through the spotting scope, as severe and permanent eye damage may occur. |
| Tripod Stability | Use a stable tripod and ensure the scope is securely mounted before viewing. |
| Impact Protection | Do not drop, strike, or expose the spotting scope to heavy impact. |
| Heat Exposure | Do not leave the scope in a closed vehicle or in direct sunlight for long periods. |
| Disassembly | Do not attempt to repair, modify, or disassemble the scope. |
