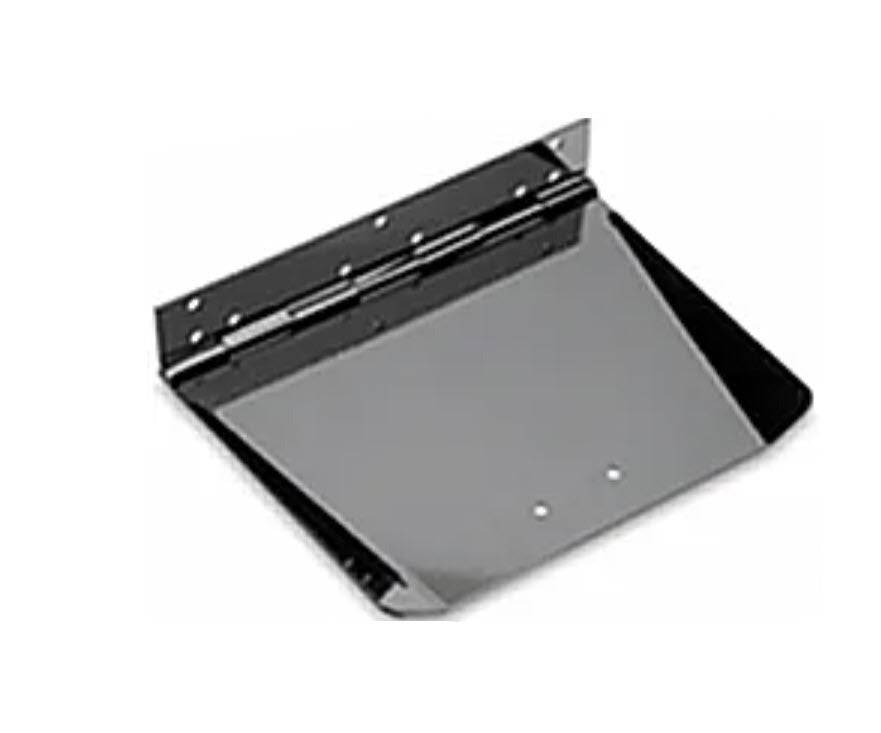

Lectrotab 12x12 S/S Trim Tab Powdercoat

Lectrotab 12x12 Stainless Steel Trim Tab Powdercoat - Lectrotab stainless steel trim tab design provides unmatched strength and reliability.

Lectrotab 12x12 Stainless Steel Trim Tab Powdercoat

Features

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding. The tabs are made of corrosion-resistant 12 gauge 304 stainless steel and are available in the standard finish (as shown), mirror-finished stainless steel, or black powder-coated stainless steel. Standard tabs are available in 9" (23cm) and 12" (30cm) chord lengths (the chord is the length from the transom to the tab trailing edge) and in widths between 9" (23cm) and 48" (122cm). See the specification chart for dimensional details. All tabs exceeding a 24" (61cm) width feature a 90-degree bent-up trailing edge for additional strength. Edges can be turned up or down, made straight or tapered, and reinforced.

Strong, corrosion-resistant 12 gauge, 304 stainless steel.

• A continuous rolled and pinned hinge provides added strength and eliminates the need for welding.
• Standard chord lengths available in 9" (23cm) and 12" (30cm) and widths from 9" (23cm) to 48" (122cm).
• Custom chord lengths and widths are also available.
• Dual actuator mounting is available.
• A black powder-coated finish or mirror finish is available.
• Zinc anodes may be installed for additional galvanic corrosion resistance.
• Bent trailing edge standard for tabs exceeding 24" width.
• Includes carriage bolts and nuts for actuator mounting to tab.

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS

PRODUCT CODE TRIMPC12X12
