Lectrotab
Lectrotab 9in x 9in Stainless Steel
Sent from NZ Supplier (3-4 Days)
Lectrotab 9in x 9in Stainless Steel - Product Code TRIM9X9MID - Provides Unmatched Strength and Reliability.

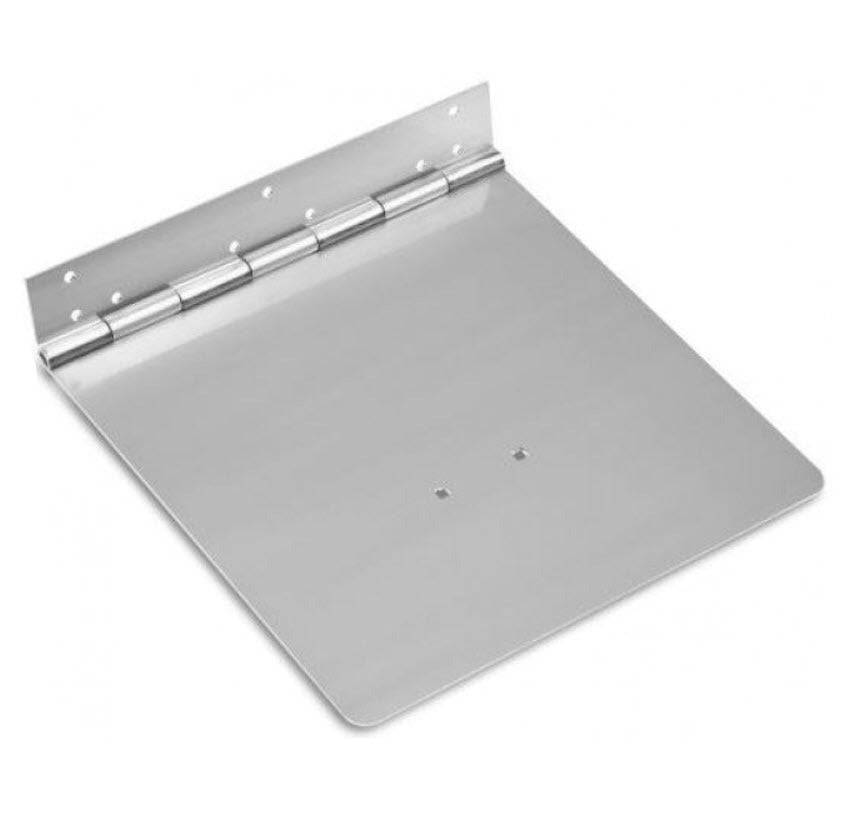

Lectrotab 9in x 9in Stainless Steel
Features
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding. The tabs are corrosion-resistant 12 gauge 304 stainless steel and are available in the standard finish (as shown), mirror-finished stainless steel, or black powder-coated stainless steel. Standard tabs are available in 9" (23cm) and 12" (30cm) chord lengths (the chord is the length from the transom to the tab trailing edge) and in widths between 9" (23cm) and 48" (122cm). See the specification chart for dimensional details. All tabs exceeding a 24" (61cm) width feature a 90-degree bent-up trailing edge for additional strength. Edges can be turned up or down, straight or tapered, and reinforced. For galvanic protection, pre-installed zinc anodes are also available.
Lectrotab specializes in providing customized tab designs. Please get in touch with Lectrotab for your specific tab needs.
- Strong, corrosion-resistant 12 gauge, 304 stainless steel.
- A continuous rolled and pinned hinge provides added strength and eliminates the need for welding.
- Standard chord lengths are available in 9" (23cm) and 12" (30cm) and widths from 9" (23cm) to 48" (122cm).
- Includes carriage bolts and nuts for actuator mounting to tab.
THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS
Product Code TRIM9X9MID
