Lectrotab

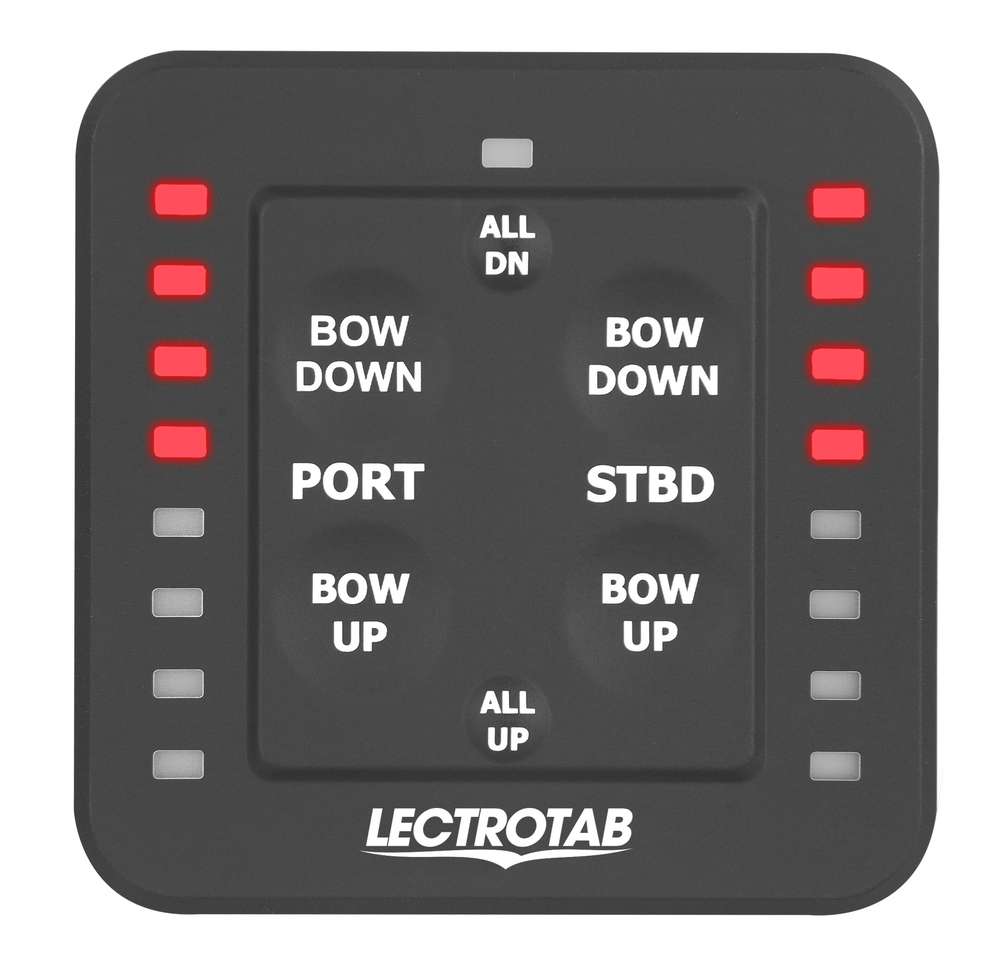

Lectrotab One-Touch Leveling LED Control
Sent from NZ Supplier (1-2 Days)
Lectrotab One-Touch Leveling LED Control - provides a user-friendly control for a more enjoyable boating experience. Code CSLC-11-ATL
Lectrotab-One-Touch-Leveling-LED-Control
Features
Lectrotab is excited to introduce a new control incorporating features requested by boat owners to provide a user-friendly control for a more enjoyable boating experience.
- One-Touch button to raise/lower tabs
- Automatic tab position return
- Completely sealed and waterproof
Features
- Microprocessor-based trim tab control with LED tab position indicators
- Single-button press to move both tabs up or down simultaneously
- Direct replacement for Oval LED (SETR-61) controls
- Automatic return to last tab position if the ignition key is turned off and back on again
- Completely sealed, completely waterproof, and will not deteriorate in sunlight
- Automatic tab retraction and calibration with key or accessory switch off
- Easy upgrade from rocker switch style control
- No external power module required for single or dual actuator per tab systems
- LED tab position indicators to dim automatically in darkness and brighten in the sunlight
- Adjustable programming features located on the back of the specification sheet
- Operates on 12 or 24-volt dc systems
Specifications
- Model Number SLC-11
- Display Color Black
- Number of Stations / Actuators 1 or 2 Stations / 1 or 2 Actuators/tab
- Overall WidtH 3.0 INCH / 77mm
- Overall Height / Thickness: 3.0" (77mm) / 437" (11mm)
- Mounting Hole Cutout (Diameter): 2.25" (57mm) to 2.5" (64mm)
- DC Voltage: 12/24
- Fuse Size Power Input (1 Actuator per Tab): 12vdc = 15 or 20 amp 24 vdc = 10amp
- Fuse Size AUX Terminal (MUST CONNECT): 1 to 2 amp
SLC Programming
Program Mode Sequence
Setting | Enter | Change setting | Exit and Save | Range | Default | Program Details |
Timing | Port Bow Down | Press and hold Stbd. Bow Up/Down | Port Bow Up | 4 - 12 seconds | 8 sec | 8 LED's = 8-second actuator. 4 LED's = 4-second actuator |
Swap LEDs | Starboard Bow Down | Stbd. Bow Up/Down | Port Bow Up | LEDs opposite or same side as a button press | LEDs opposite | 1 LED each side = LEDs opposite button press / 8 LEDs each side = same side |
Remember the last tab setting | Port Bow Up | Stbd. Bow Up/Down | Port Bow Up | Standard retract / Remember last tab setting | Standard | 8 LEDs each side = Standard / 1 LED each side = Remember last tab setting |
Disable Auto Tab Retract | All Up and All Down Simultaneously for 2 seconds or longer | Stbd. Bow Up/Down | Port Bow Up | Enable / Disable | Enable | 1 LED each side = Auto Tab Retract Enable / 8 LEDs each side = Auto Tab Retract Disable |
Enter, Adjust, and Exit Program Mode:
- Before entering program mode, 12vdc or 24vdc must be applied to Oval main power
- Power to AUX terminal must be OFF (Aux is typically connected to ignition key switch or aux switch)
- Press and hold button noted in Programming chart under column 'Enter' for more than 2 seconds while switching the Aux terminal switch to ON at the same time
- Release the 'Enter' button and press the 'STBD BOW UP or DOWN' button to change the value
- Press and hold 'PORT BOW UP' for more than 2 seconds to exit program mode
- This item is shipped directly from supplier
Code SLC-11
