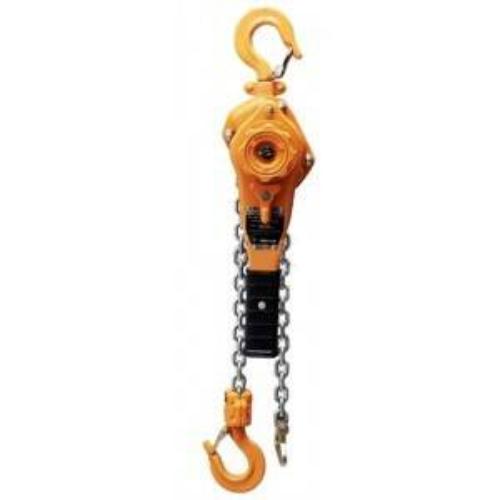

Lever Hoist - Nxtgen 0.80T X 3.0m

Lever Hoist - Nxtgen Overload Protected - Suitable For the Most Demanding Industrial Applications Product No. KV00830

Lever Hoist - Nxtgen Overload Protected 0.80T X 3.0m

Features

The NXTGEN Lever Hoists feature advanced safety features, suitable for the most demanding industrial applications.

'Overload Protection' will not allow this lever hoist to Pull/Lift above factory settings.

Reduced Effort needed when lifting loads.

Available in capacities ranging from 800kg to 9 tonne in standard lifting heights of 1.5 metres. Optional lifting heights available on request.

• Compact design, small body, low headroom.
• Short lever handle, light operation force.
• Zero pre-load required.
• High precision CNC gears.
• Impact resistant gear cover.
• Zinc plated fixings and guide.
• Zinc plated Grade 100 load chain.
• Heavy duty cast hook safety latches.
• Thrust bearing in bottom hook.
• Stainless steel ID plate.
• Double pawl brake system.
• Fused brake.
• Heavy duty end stop.
• High precision caged roller bearings support the load sprocket.
• Dacromet coated parts.
• Overload protection with fused friction discs.
• Recessed latch for better closure and longevity of hook.
• Manufactured to comply with Australian Standard AS1418.2
• 5 YEAR Limited Warranty
• Hoist Options; 0.80T X 3.0m

Product Advantages;

• Reduced effort; Needle and ball roller bearings allows minimum effort when lifting loads.
• Increased safety; When activated, factory-set overload protection will not allow the lever hoist to operate if overloaded.
• Reliable brake; Safe, reliable double pawl brake activates instantly and holds the load securely.
• Solid construction; Solid alloy steel frame construction, with a compact, low headroom design.

Packaging...

These items are to large for Courier Bags

PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS

THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING

Product No. KV00830
