LIFTING Eye G10 Beta M24 4.0T WLL

LIFTING Eye G10 Beta - M24 4.0T WLL - Individual Identification Traceability High Grade 10.9 Crack Tested Bolt Product No. PLBW-4-M24

LIFTING Eye G10 Beta M24 4.0T WLL

Features

• Top Quality Quality from AUSTRIA
• Individual Identification Traceability
• 360 Degree Rotation
• 180 Degree Load Range
• High Grade 10.9 Crack Tested Bolt
• Size Options; M24 X 36mm 4.0T WLL

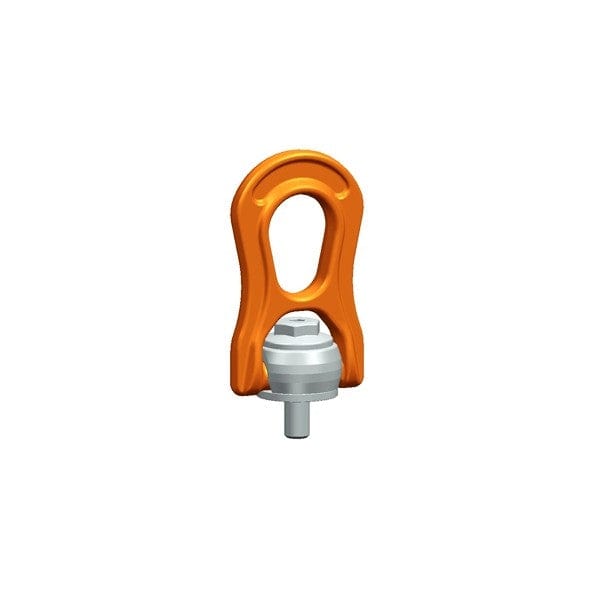

360 degree rotatable lifting point. The load ring is 180 degree movable and can be held at each requested position due to its replaceable and patented spring. Likewise interchangeable is the hexagon-special screw of grade 10.9 material, which is secured against loss. The screw is 100 percent crack-tested as well as covered with a chromium VI free protection against corrosion, and marked with WLL and thread size. It can be tightened with a hexagon wrench or spanner wrench.

The lifting points pewag winner profilift beta are marked with an individual serial number, that allows product traceability and load capacity for the most inappropriate field of operation, which explains the increased WLL in the upright loaded position.

PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS

THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING

Product No. PLBW-4-M24
