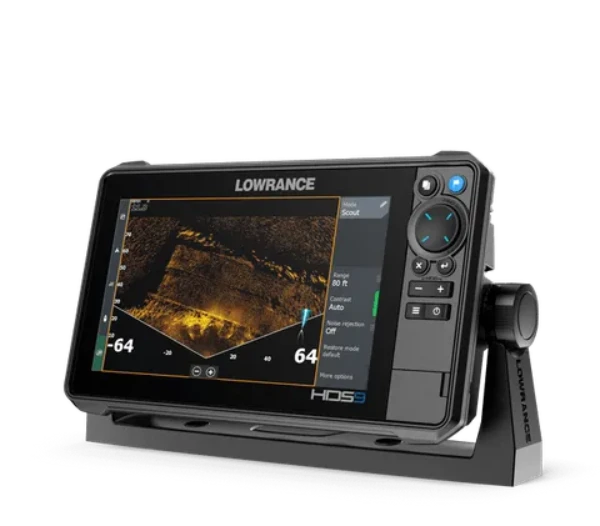

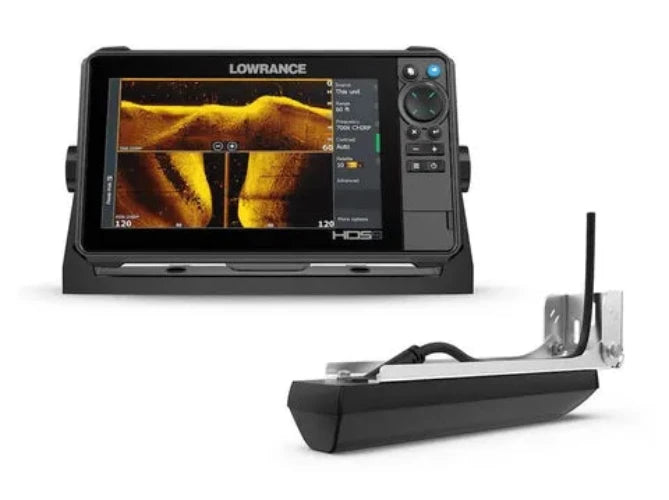

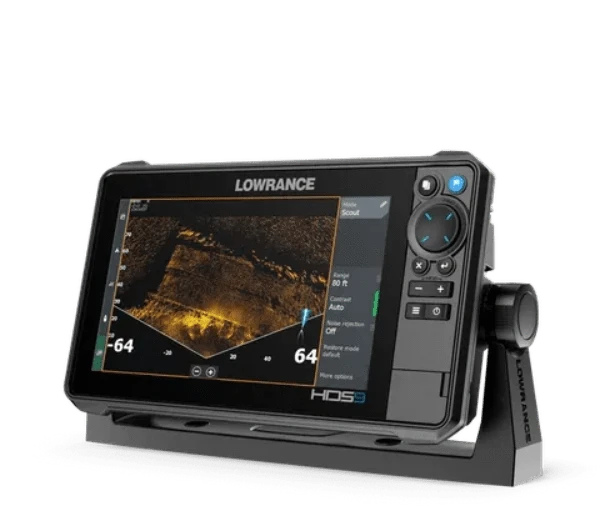

Lowrance HDS-9 PRO with ActiveImaging™ HD 3-in-1 transducer. 9" SolarMAX HD IPS display, Dual 1kW sonar with CHIRP.
Networkable to Lowrance performance sonars (ActiveTarget™ and ActiveTarget™2), Radars, Trolling Motors, and Autopilots along with waypoint, chart, and sonar sharing. With C-MAP Discover charts of Austrialia and New Zealand.
Key Features:
SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
New! High-definition 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
New! High-resolution ActiveTarget® 2 Live Sonar ready
Supports two ActiveTarget Systems for multiple views simultaneously
Supports FishReveal™ with new SideScan view, as well as Downscan*
Available in 9, 10, 12 and 16-inch display size
Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap (AMER ONLY)
Preloaded C-MAP® Enhanced charts for New Zealand and Australia (APAC ONLY)
W
orldwide basemap with upgrade options for C-MAP® DISCOVER and REVEAL or other charting suppliers. (EMEA/ROW ONLY)
Real-time mapping available with C-MAP® Genesis Live.
Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
Large programmable keys
Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.
Display
Backlight Color
Pure White LED
Display Resolution
1280 x 720
Screen Brightness
>1200 Nits
Viewing Angles
80° top/bottom, 80° left/right
Electrical
Power Consumption max
2.9A @ 13VDC with Full Backlight, Sonar on
Power Consumption min
2.0A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical
2.0A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating
3A
Supply Voltage
12 v DC (10.8-17 V DC)
Physical
Dimensions
W x H x D 11.02in (280.0mm) x 6.56in (166.7mm) x 3.05in (77.7mm)
Weight
4.14lb (2.00kg)
Compass Safe
12" (300mm)
Mounting Type
Panel mount or bracket mount
Environment
Humidity
60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range
5°F to 131°F (-15°C to 55°C )
Shock Vibration
100,000 cycles of 20 G
Storage Temperature Range
4°F to 140°F (-20°C to 60°C )
Waterproof rating
IPX7 with card door closed
Interface
Touchscreen
Full Multi-touch touchscreen
Keypad
8-way directional keypad
Buttons
Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light

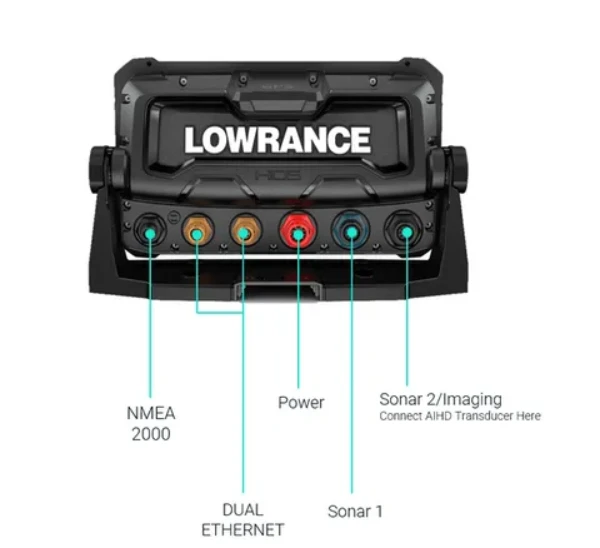

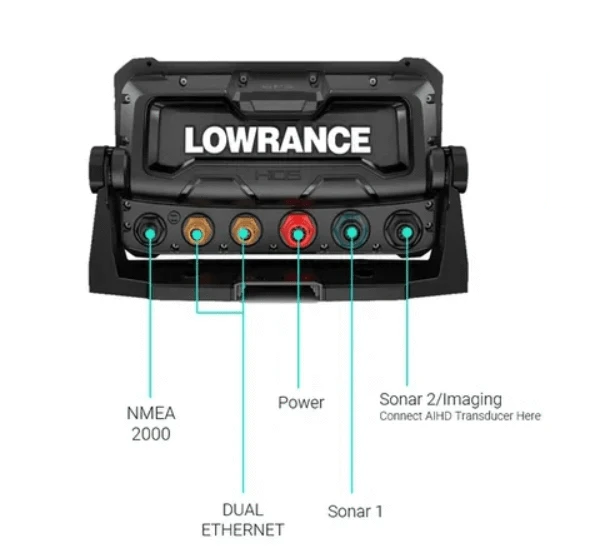

Connectivity
Bluetooth® 5.2 with support for Bluetooth® classic
Ethernet Ports
2 x 100 Mbit, 6 max MFD's on a network
Connectivity Wi Fi
Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000
1x Micro-C
SD Card Storage
2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS
NMEA 0183
via Power cable
Video
Output
None
Input
Composite video RCA - single channel via optional adaptor
