Mass Combi 12v/2200 watts-230volts

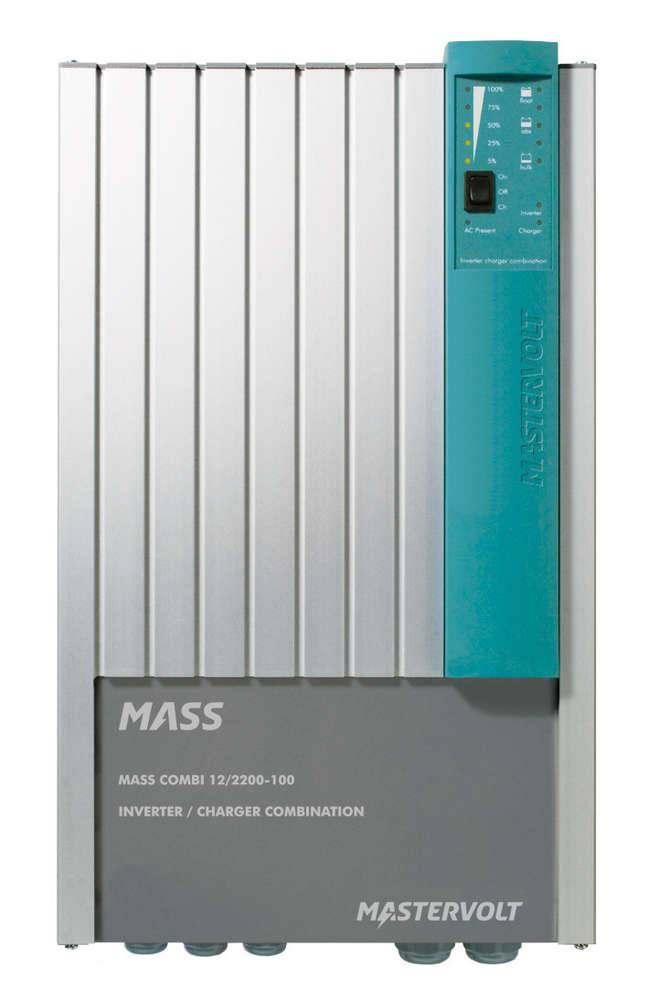

MasterVolt Mass Combi 12/2200-100 (230 V) advanced battery charger and silent inverter. Code MV-36012200

MasterVolt Mass Combi 12/2200-100 [230 V]

Features:

The Mastervolt Mass Combi combines the best of both worlds: an advanced battery charger and silent inverter in one compact device.

The powerful 3-step+ battery charger guarantees maximum life and can charge two battery banks simultaneously. A built-in distribution system switches between grid and inverter power, while two separate AC outputs allow users to connect critical loads to a preferred group.

Benefits of the Mass Combi:

• Compact, lightweight and no hum, thanks to HF technology
• High yield and more power from your batteries
• Intelligent 3-step+ battery charger with low DC ripple current for fast charging times and long battery life
• Charges two individual battery banks simultaneously
• Quiet, powerful inverter with 200 per cent peak power
• Power Assist: extra power assistance from the batteries in case of limited grid or generator power (prevents blown fuses)
• Pure sine wave energy prevents failures and damage to sensitive equipment such as adapters
• Dual AC outputs to separate critical equipment from heavy loads
• Higher yields possible via parallel switching (only for 2200 and 2600 W models)
• Professional connections ensure fast installation and operational security

Specifications

• Nominal DC voltage12 V (10-15 V)
• Output voltage230 V (± 5 %), adjustable 180-250 V
• Output frequency50/60 Hz (± 0.05 %), configurable
• Output waveform true sine, Thd < 2.5 % under standard conditions
• Continuous power at 25 °C / 77 °F, cos phi 12150 W
• Max. peak load4000 W
• Max. efficiency≥ 90 %
• Max. ripple on DC (battery at full load)< 5 %
• No-load power consumption on DC (ON/inverter OFF/OFF/energy saving)9 W / 0.1 W / 0 W / 0.5 W
• Parallel configurations, yes, up to 2 units
• 3-Phase configuration: no
• Synchronise with mains/generator: yes

Specifications battery charger

• Input voltage range180-265 V
• Max. input current7.2 A
• Max. charge current at 25 °C / 77 °F100 A at 14,25 V, adjustable
• Secondary charger output voltage12 V
• Secondary charger output current5 A
• No-load power consumption on AC< 15 W
• Battery temperature sensors, included
• Battery voltage sense automatic compensation

Specifications transfer system

• AC input 150 A (25 A switched, to short break output)
• AC output 125 A (short break output)
• AC output 250 A (power output)
• AC input fuses, resettable
• Transfer speed half seamless (25 ms max., 10 ms typical)
• Transfer voltage range180-265 V
• Transfer frequency range45-65 Hz

General specifications

• Display/read-outLED display
• Dimensions, h x w x d 496 x 318 x 156 mm
• Weight: 11 kg

Technical specifications

• Charge characteristic3-step+ (IUoUo, fully automatic), Equalize
• Battery types AGM/gel/MLI/flooded/spiral/traction
• Recommended battery capacity~ 200-600 Ah (based on gel batteries, may differ for other types)
• Ground relays, configurable
• Temperature range (ambient temp.)-25 C to 60 C, derating > 25 C
• -13 F to 140 F
• Protection degreeIP23 (vertical mounting)
• Safety class IEC protection class I
• Humidity protection conformal coating, max. 95 % relative humidity, non-condensing
• Protectionsover temperature, overload, short circuit, high/low battery voltage
• Cooling maintenance-free vari fans

Power Assistyes

MasterBus compatible yes, in combination with a MasterBus Combi Interface

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIER

NZ Code MV-36012200
