Trojan

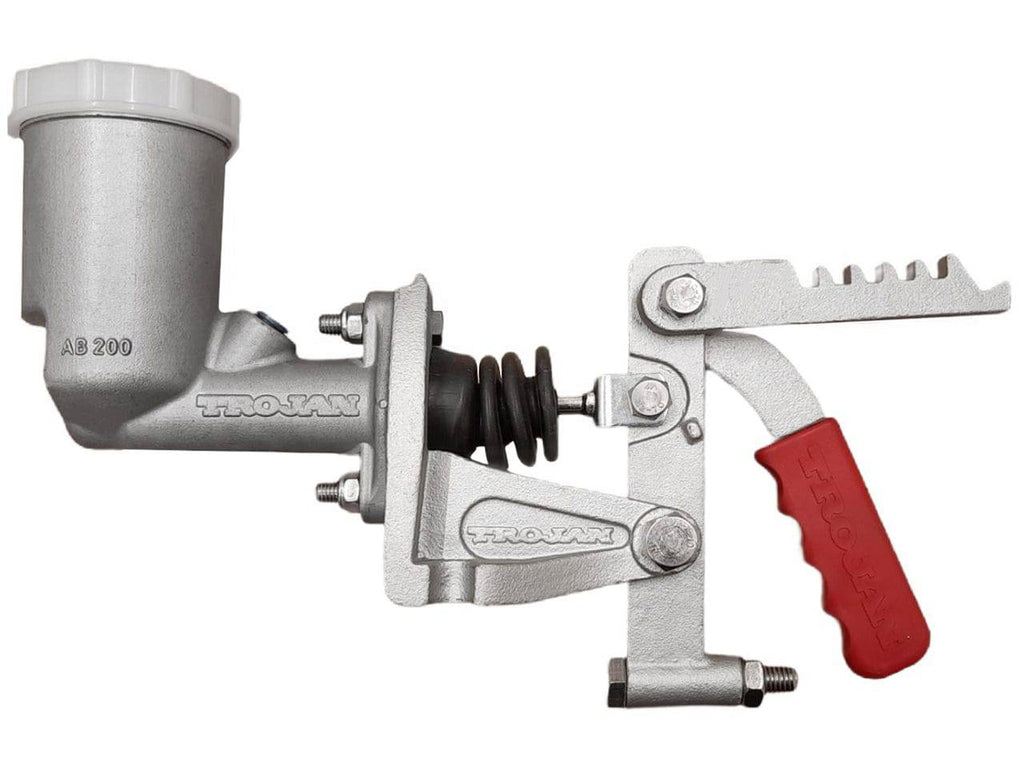

Master Cylinder Bracket & Lever Assembly
Sent from NZ Supplier (1-2 Days)
Master Cylinder Bracket & Lever Assembly
Bracket assembly with 7/8” cylinder, new style
Specifications
NB: Two Master Cylinder sizes are supplied on Trojan Couplings being 3/4" bore and 7/8" bore. The 3/4" bore version has an alloy body and reservoir, while the early 7/8" version has a plastic reservoir, late model 7/8" cylinders were all alloy. Very early back, frames were pressed steel. The current versions will interchange with these. A back frame assembly is available allowing the conversion of Mechanical Operation Override Couplings to Hydraulic action.
Item: | Part No: | Description: | Notes: |
---|---|---|---|
1 | T201680 | Back Frame & Lever | All |
1 | T993050 | Back Frame Assembly - Includes Lever & hydraulic Cylinder | 3/4" Cylinder |
1 | T993052 | Back Frame Assembly - Includes Lever & Hydraulic Cylinder | 7/8" Cylinder |
2 | T993082 | Lever Assembly - Includes Pawl (Fold-down type) | All |
3 | TPT1038 | Plastic Grip | All |
4 | TPT10391 | Master Cylinder Assembly | 3/7" Cylinder |
4 | TPT10392 | Master Cylinder Assembly | 7/8" Cylinder |
Back frame assembly including master cylinder available in ¾’ bore size for 2 wheel braked and 7/8” bore size for 4 wheel braked trailers. Mounting by way of two 12 bolts across the rear of most standard braked couplings of the same format.
