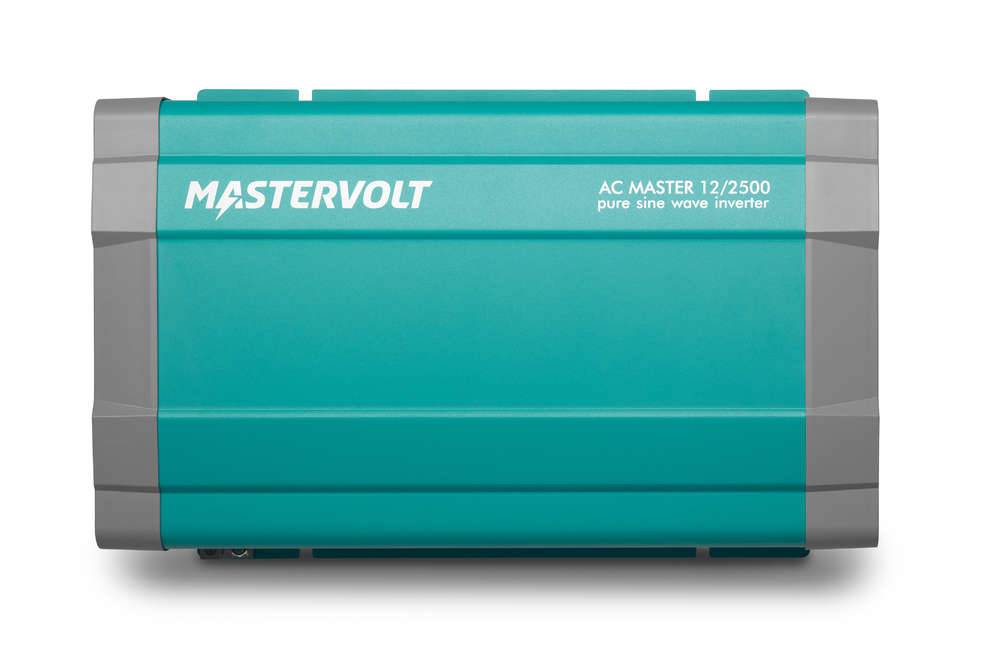

MasterVolt 2500 watt 12V Inverter

MasterVolt 2500 watt 12V Inverter - The AC Master series is easy to install. Product Code MV-28412500

MasterVolt 2500 watt 12V Inverter

Features

AC Master 2500 Watt Inverter – Hardwired connection


Combine 2 up to 15 units to obtain high power or 3-phase systems

A very competitively priced pure sine wave inverter.

Convert 12-volt battery power into a reliable 230 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications.


The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.

The rugged inverter provides essential home comforts when you’re far from the nearest grid connection.

• Pure sine wave technology protects sensitive equipment
• Delivers full output at high peak power under the most demanding conditions
• Automatic power-saving system for extended runtime
• Compact and lightweight design, saving valuable installation time
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage
• Variable-speed fan for quiet operation at low power
• Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models)
• Combine 2 up to 15 units to obtain high power or 3-phase systems
• Integrated transfer system, switches automatically between AC power sources

Applications

Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking and power tools. For (mobile) applications in your home, office or service vehicle, or during your holidays.

Specifications

• Output voltage: 230 v
• Output waveform: True sine
• Nominal battery voltage: 12 V
• Recommended battery capacity: ≥ 270 Ah
• Continuous power at 25 °C / 77 °F, cos phi 12500 W
• Continuous power at 40 °C / 104 °F, cos phi 12500 W
• Peak load (3 sec.) < 3000 W
• Peak load (< 0.2 sec.) < 4000 W
• AC connection hardwired
• Efficiency 88 %
• Parallel configuration: Yes, up to 15 units
• 3-Phase configuration: Yes, 3 units
• Display/read-out: LED indication: battery voltage, status
• Alarms: Potential free alarm contact
• Dimensions (h xw x d)
• 283 x 436 x 128 mm
• Weight: 8 kg
• Approvals: CE, E-mark, RCM

Technical specifications

• Technology: high frequency, input & output fully isolated
• Low battery voltage, switches off at10.5 V
• Low battery voltage, switches on at12.5 V
• High battery voltage, switches off at16.5 V
• High battery voltage, switches on at14.5 V
• Input current (nominal load)250 A
• No-load power consumption (ON mode)< 3.6 A
• No-load power consumption (energy saving mode)< 1.1 A
• Minimal DC fuse (slow blow)300 A
• Minimal cable size: 95 mm²
• Harmonic distortion typical< 5 %
• Cos phial power factors allowed
• Transfer system integrated, automatic (inverter to the grid: 8~10 ms, grid to inverter: 16~50 ms). Not for parallel & 3-phase operation (external transfer system possible)
• Temperature range (ambient temp.)-20 °C to 60 °C, derating power > 40 °C
• -4 °F to 140 °F
• Protection degreeIP21, horizontal wall mounting
• Protectionsover-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
• Cooling temperature and load-controlled fan
• MasterBus compatible: No

NZ Code: MV-28412500

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS - PLEASE CONTACT US FOR AVAILABILITY
