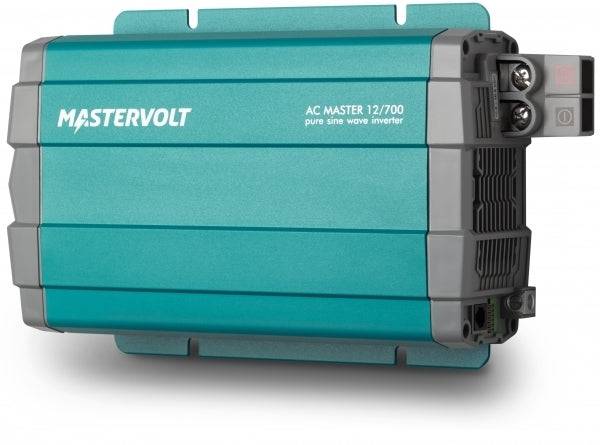

MasterVolt 700 watt 12V Inverter

MasterVolt 700 watt 12V Inverter - Mastervolt sine wave inverters have proven themselves. Product Code MV-28410700

MasterVolt 700 watt 12V Inverter

Features

Mastervolt sine wave inverters have proven themselves under the most extreme conditions for over 25 years

• Pure sine wave technology protects sensitive equipment.
• Delivers full output at high peak power under the most demanding conditions.
• Automatic power-saving system for extended runtime.
• Compact and lightweight design, saving valuable installation time.
• Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
• Variable-speed fan for quiet operation at low power.
• Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models).
• Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.

General Specifications

• Output voltage 200/220/230/240 V – 50/60 Hz (selectable)
• Output waveform true sine
• Nominal battery voltage12 V
• Recommended battery capacity≥ 100 Ah
• Continuous power at 25 C / 77 F, cos phi 1700 W
• Continuous power at 40 C / 104 F, cos phi 1700 W
• Peak load (1 min.)< 810 W
• Peak load (1 sec.)< 1230 W
• AC connection: With NZ/AU plug (code 28410700)
• Efficiency91 per cent
• Display/read-outLED indication: battery voltage, load level, status
• Alarms: potential-free alarm contact

Dimensions (h x w x d)

• 200 x 330 x 83 mm
• 7.9 x 13.0 x 3.3 inch
• Weight: 2.7 kg

approvals, E-mark, RCM

Technical specifications

• Technology high frequency, input and output fully isolated
• Low battery voltage, switches off at10,5 V
• Low battery voltage, switches on at12,5 V
• High battery voltage, switches off at16,5 V
• High battery voltage, switches on at14,5 V
• Input current (nominal load)70 A
• No-load power consumption (ON mode)< 1.5 A
• No-load power consumption (energy saving mode)< 0.1 A
• Minimal DC fuse (slow blow)100 A
• Minimal cable size25 mm²
• Harmonic distortion typical< 5 per cent
• Cos phial power factors allowed
• Temperature range (ambient temp.)-20 C to 60 C, derating power > 40 C
• -4 F to 140 F
• Protection degreeIP21, horizontal wall mounting
• Protectionsover-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
• Cooling temperature and load-controlled fan

Not compatible with MasterBus

THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS

PLEASE CONTACT US FOR SHIPPING

NZ Code MV-28410700
