Maxwell Marine

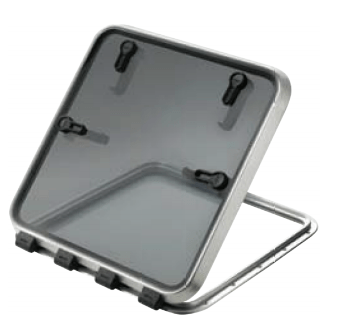

Maxwell Offshore Deck Hatch 559mm x 559mm
Sent from NZ Supplier (4-7 Days)
Maxwell Offshore Deck Hatch 559mm x 559mm - MAGNUS is a completely new range of extra heavy duty hatches.
Maxwell Offshore Deck Hatch 559mm x 559mm
Features
Maxwell Vetus Magnus Escape Hatch – Hand-polished anodized aluminium frame
- Overall Dimensions 559 x 559 mm
- Ocean use
- Fully waterproof
- Deck or hull mount
- Open through 180
MAGNUS is a completely new range of extra heavy-duty hatches. They are CE classified AI. They are rated and designed for ocean use and can be fitted in any part of the hull or deck. Application on habitable multihulls as a means of escape in the inverted position.
These hatches are provided with friction hinges, which will keep the hatch open in any position, without the need for stays. The hatch can be opened through 180 degrees and there are virtually no obstructions in the hatch opening. The MAGNUS range can be opened from inside or outside the boat. They can also be left locked; either completely watertight or in a ventilation position.
Specifications
- Cut-Out Size -C and D- 507 x 507 mm
- Overall Size -A and B- 563 x 563 mm
- Corner Radius 43 mm
- Height 36 mm
- Vetus Hatch Materials Finish - Hand Polished Satin
- Lid Type 10mm 'Dark Smoke' Acrylic
- Support type Friction Hinge
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIERS
PRODUCT CODE 4647
