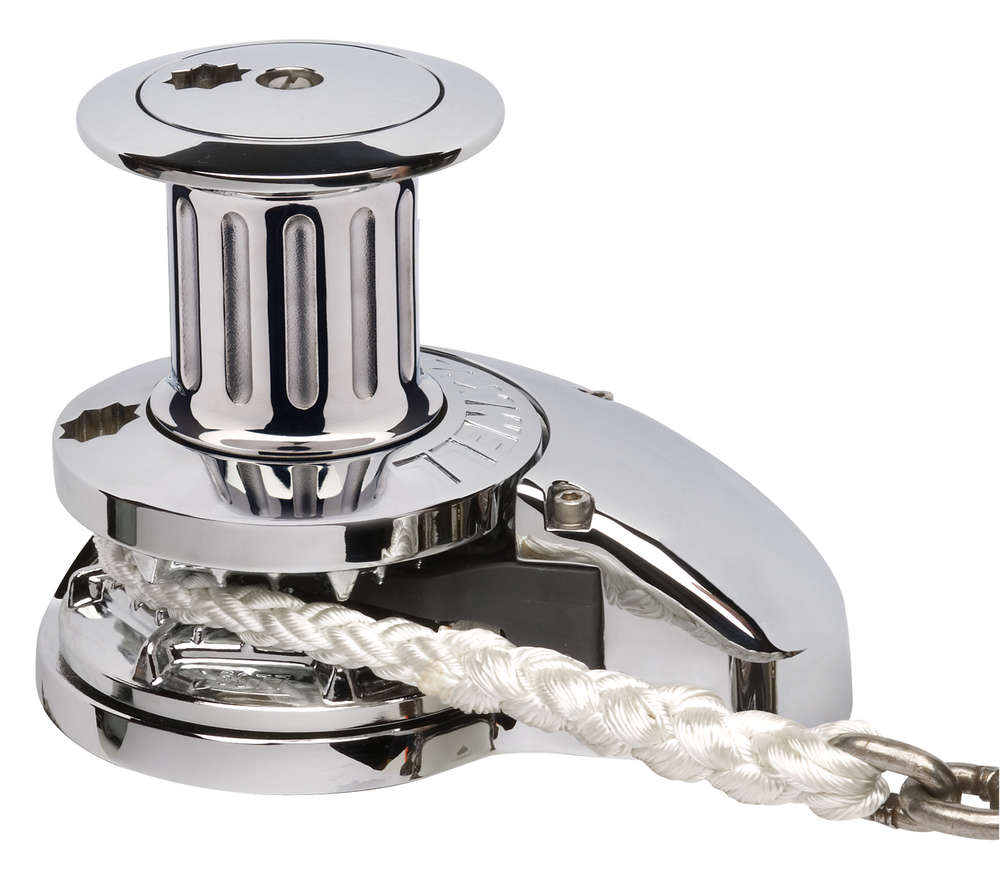

Maxwell RC10-10 w/ Capstan 24V - 1200W

Maxwell RC10-10 w/ Capstan 24V/1200W - This RC12 Series incorporates Maxwell's latest stylish innovation in automatic rope/chain technology

Maxwell RC10-10 w/ Capstan 24V/1200W OPEN CHAIN SERIES

Please email for stock ETA contact info

Maxwell's all-new RC series windlasses proudly follow in the highly successful footsteps of the Freedom, Liberty and HRC fully automatic rope/chain anchor winches. RC10


Every Maxwell automatic rope/chain windlass is available with all the necessary components for fully automatic dual direction control in a competitively priced package.

Maxwell's Revolutionary New Chainwheel Design

FEATURES

• The combined stainless steel and chromed bronze RC10 fully automatic windlass series is designed to effortlessly retrieve and deploy 8mm (5/16 inch) and 10mm (3/8 inch) short link chain and 14mm and 16mm (5/8 inch) three strand or 8-brait (plait) rope.
• A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.
• Simple two-piece installation saves time and money and allows easy retrofitting without disassembly of the windlass. Unique spacer tube design allows installation through virtually any deck thickness and the multiple mounting positions and self-aligning gearbox ensure optimal location of gearbox and motor in virtually all installation situations.
• Full disassembly capability of the top works utilizing only the handle provided and an Allen key.
• The RC10 is manufactured from marine-grade 316 stainless steel and chromed bronze for long-term durability. The heavy-duty stainless steel pressure arm, coupled with the unique rope/chain gypsy, is designed to effectively grasp the splice between rope and chain, giving the RC10 an unparalleled level of performance.
• In combination with a heavy-duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble-free bearing, thereby exerting maximum control pressure on the rode and splice.
• The RC10 works just as effectively with all-chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck.
• Huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.
• Cone type clutch/brake mechanism permits manual, Free Fall anchoring.
• Sealed oil bath and marine-grade hard anodized, alloy gearbox provide maximum output via a precision worm and worm wheel.

PLEASE READ THE SPECS CORRECTLY BEFORE BUYING - THIS IS SENT DIRECTLY FROM OUR SUPPLIER - WE DO NOT HAVE THE ROOM TO STOCK THIS ITEM IN OUR SHOP

SPECIFICATIONS:

• Maximum Pull: 850kg/1870lbs
• Static Hold: 1500kg/3300lbs
• Chain Short Link: 10mm ( 3/8”)
• Rope Size Nylon (3 strand or 8 plait): 16mm (5/8”)
• Chain Speed: 24m/min (79ft/min)
• Rope Speed: 20m/min (66ft/min)
• Power Supply (DC) 24v
• Motor Power: 1200W
• Net Weight Electric : 20kg / 44lbs
• Included as Standard: Emergency crank/clutch release handle, motor & gear box.
