![Maxwell RC10-10 with Capstan 12V 1200W - Action Outdoors Kiwi](http://actionoutdoors.kiwi/cdn/shop/files/maxwell-marine-anchor-chain-rope-winches-default-title-maxwell-rc10-10-with-capstan-12v-1200w-45949717217565.jpg?v=1723928096&width=1000)
Maxwell Marine

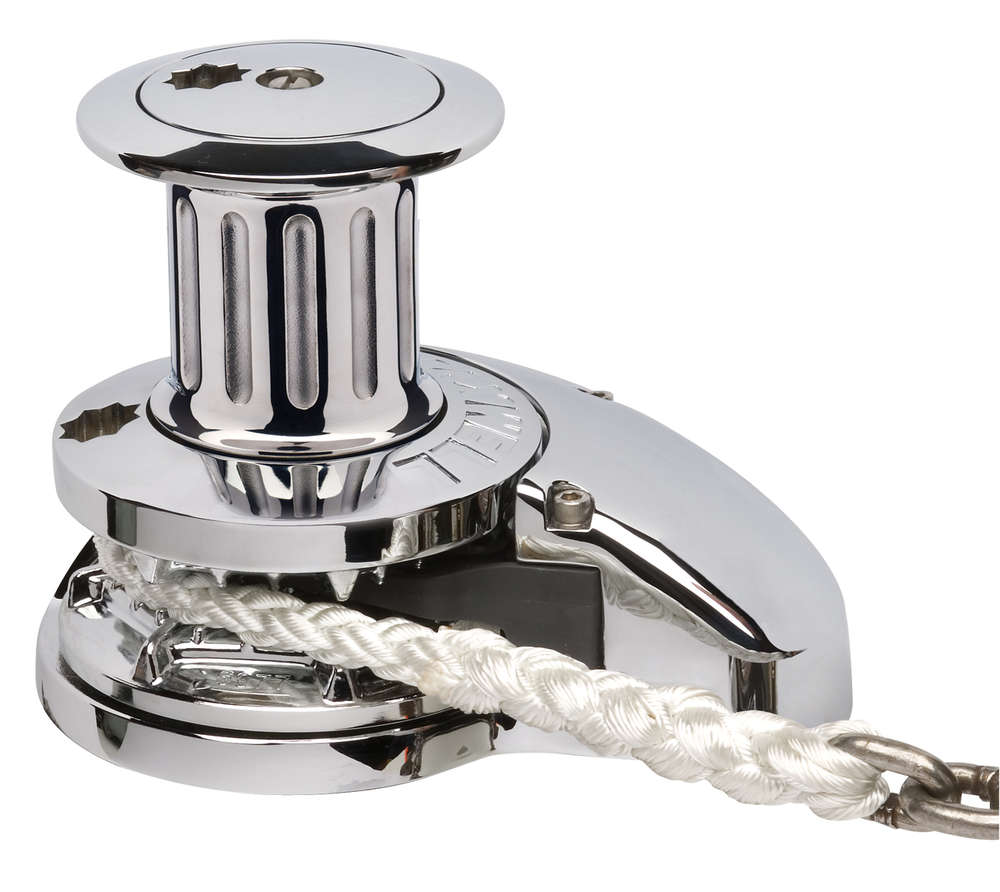

Maxwell RC10-10 with Capstan 12V 1200W
Sent from NZ Supplier (1-2 Days)
Maxwell RC10-10 w/ Capstan 12V/1200W - This RC12 Series incorporates Maxwell's latest stylish innovation in automatic rope/chain technology.
Maxwell RC10-10 w/ Capstan 12V/1200W
Features
1200 watt low profile stainless windlass with capstan
Suitable for DIN 10mm chain and rope combinations
Suitable for vessels up to 15.5m depending on vessel weight.
- The combined stainless steel and chromed bronze RC10 fully automatic windlass series is designed to effortlessly retrieve and deploy 8mm (5/16”) and 10mm (3/8”) short link chain and 14mm and 16mm (5/8”) three-strand or 8-brait (plait) rope.
- A sleek, Low Profile version and a fluted stainless steel capstan drum version are available.
- A simple two-piece installation saves time and money and allows easy retrofitting without disassembling the windlass. The unique spacer tube design allows installation through virtually any deck thickness. The multiple mounting positions and self-aligning gearbox ensure the optimal location of the gearbox and motor in virtually all installation situations.
- Full disassembly capability of the top works utilising only the handle provided and an Allen key.
- The RC10 is manufactured from marine-grade 316 stainless steel and chromed bronze for long-term durability. The heavy-duty stainless steel pressure arm, coupled with the unique rope/chain gypsy, is designed to effectively grasp the splice between rope and chain, giving the RC10 an unparalleled level of performance.
- In combination with a heavy-duty, large wire diameter, stainless steel pre-loaded spring, the pressure arm pivots on a trouble-free bearing, exerting maximum control pressure on the rode and splice.
- The RC10 works just as effectively with all-chain rodes for those who desire a Low Profile, elegantly styled windlass on their foredeck.
- Huge, through deck hawse pipe throat ensures easy entry of the rope/chain into and out of the anchor locker.
- Cone-type clutch/brake mechanism permits manual, Free Fall anchoring.
- A sealed oil bath and marine-grade complex anodised alloy gearbox provide maximum output via a precision worm and worm wheel.
Specifications
- Maximum Pull 850kg/1870lbs
- Static Hold 1500kg/3300lbs
- Chain Short Link 10mm ( 3/8”)
- Rope Size Nylon (3 strand or 8 plait) 16mm (5/8”)
- Chain Speed 24m/min (79ft/min)
- Rope Speed 20m/min (66ft/min)
- Power Supply (DC) 12v
- Motor Power 1200W
- Net Weight Electric 20kg / 44lbs
- Included as Standard: Emergency crank/clutch release handle, motor and gearbox.
PLEASE READ THE SPECS CORRECTLY BEFORE BUYING
THIS IS SENT DIRECTLY FROM OUR LOCAL SUPPLIER
