Maxwell Marine
Maxwell RC12-10 with Capstan
Sent from NZ Supplier (1-2 Days)
Maxwell RC12-10 with Capstan - Product Code MRC12-10CAP - Suitable for 10mm chain and 16 mm Nylon Rope
Maxwell RC12-10 with Capstan
Features

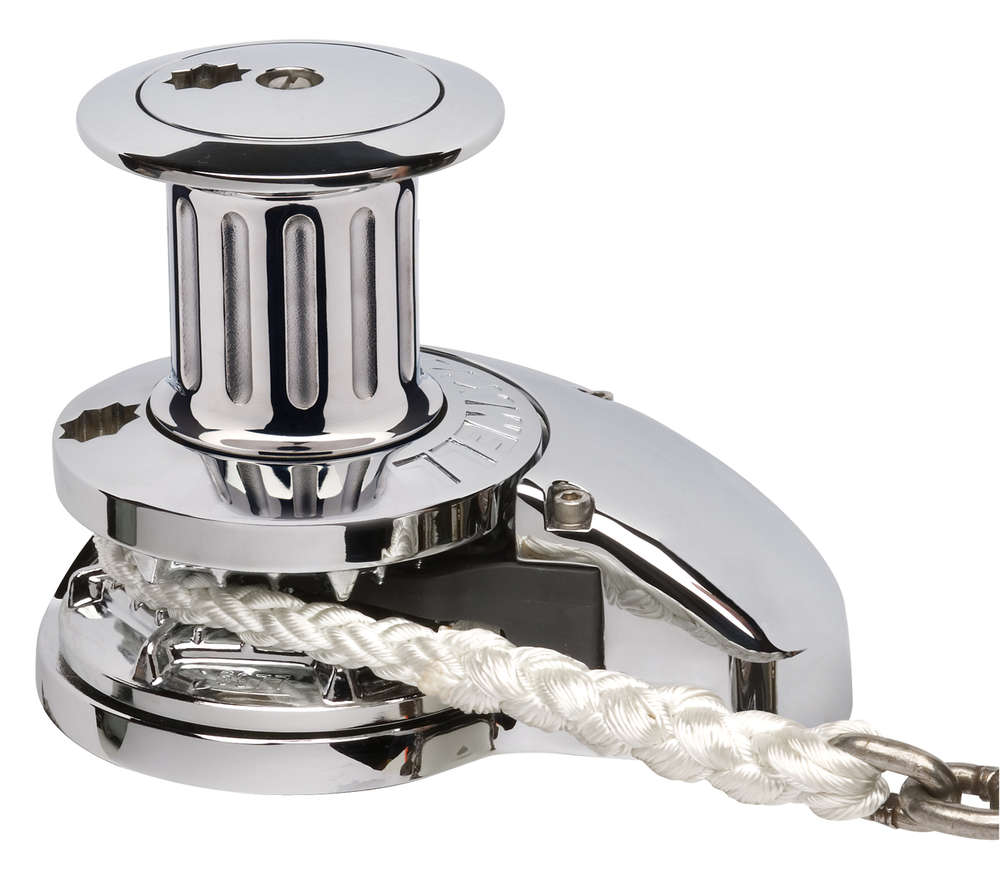

Suitable for 10mm chain and 16 mm nylon rope. The stainless steel RC12 automatic rope/chain anchor winch is Maxwell’s top-range version of the vertical RC Series Windlass range. The Capstan version has a fluted stainless steel drum, enabling independent rope handling operations.
Comes with
- Genuine Maxwell Circuit Breaker
- Genuine Maxwell Up / Down switch
The RC12-10 fully automatic windlass series is designed to effortlessly retrieve and deploy a 10-mm short link chain and 16-20 mm 8-Plait rope.
Stainless steel AISI 316.
A sleek Low Profile version and fluted stainless steel (AISI 316) capstan drum version are available.
The all-new RC12 is packed with patented innovative features combined with Maxwell's traditionally classic aesthetics but reflects the modern "form follows function" of the highly successful RC6, RC8 and RC10 series windlasses.
With a maximum pull of 1134 kg (2500 lb) and an anchor retrieval rate of 20 m/min (65ft/min), the RC12-10 is one of its class's fastest and gruntiest windlasses.
The elegantly designed deckplate and chain pipe cover are manufactured in polished marine-grade (AISI 316) stainless steel, as are the heavy-duty pressure arm, stripper, chainwheel and fluted capstan drum.
The huge, through deck hawse pipe throat, ensures easy entry of the rope/chain into and out of the anchor locker.
A double cone-type brake/clutch mechanism permits 'Free Fall' anchoring. Unlike dog clutches, Cone clutches provide smooth, progressive engagement, ensuring safe and precise operator control.
The RC12 features Maxwell's revolutionary and patented new Wave Design chainwheel.
Emergency manual retrieval is made simple and easy with Maxwell's unique "Active Latch Ratchet System" operation that prevents the backwind of the windlass during manual hauling of the anchor.
The Maxwell-designed, all-new and innovative black, hard-anodized gearbox provides numerous advantages
- Fast and easy windlass installation.
- More corrosion-resistant.
- Easy to maintain and service.
- Takes up less room in the anchor locker.
- 75:1 ratio, single-stage design with fewer moving parts, for smoother and quieter operation.
- Allows for multi-positioning of the gearbox/motor.
Every Maxwell RC12, automatic rope/chain windlass, comes with top works, motor/gearbox and dual direction solenoid.
Activating the ratcheted mechanism lever ensures the windlass cannot backwind during emergency (manual) retrieval of the rope (rope and/or chain) and anchor.
Important: Maxwell windlasses must be used with a chain stopper and/or alternative snubbing device to take the load off the windlass while laying at anchor.
The chain stopper and alternative snubbing system should also secure the anchor in the fully raised position while underway.
THIS ITEM IS SHIPPED DIRECTLY FROM OUR LOCAL SUPPLIERS
One week to manufacture in Auckland
PRODUCT CODE MRC12-10CAP
