Outboard Rise and Fall Bracket - 15HP
Sent from NZ Supplier (3-4 Days)
Outboard Rise and Fall Bracket - 15HP Product Code- 95880 This stainless steel adjustable outboard motor bracket
Outboard Rise and Fall Bracket - 15HP
Features
Stainless Auxiliary Outboard Bracket

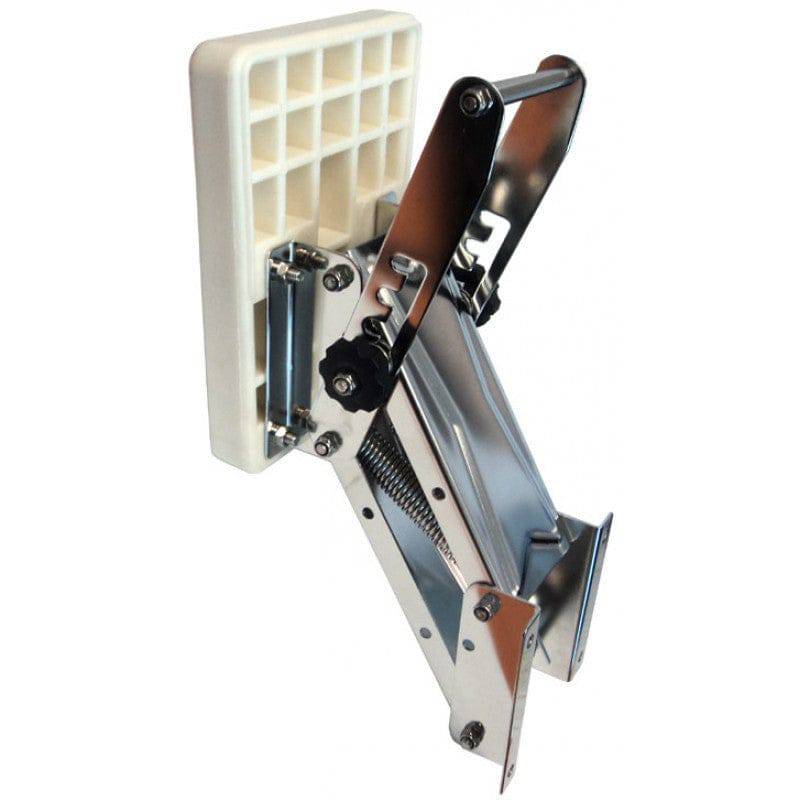

This stainless steel adjustable outboard motor bracket is the perfect bracket for most auxiliary outboard motors. Its robust construction allows it to carry engines of up to 15hp with a maximum weight of 45kg. This bracket mounts on a vertical transom and allows a small outboard motor to be lowered into the water for propulsion.
A pair of powerful stainless springs provide up to 35kg of raising assistance. The outboard bracket may be locked at four different heights. Sturdy wide construction and levers provide lateral stability. Once set in a position it can be locked securely by tightening the large hand knobs. This prevents any accidental release while trailering or in rough seas.
- Stainless Construction
- Easy Grip Handles
- 4 Height Adjustments
- Fits the most style of small outboards
- White Poly Plastic Mount
Specifications
Dimensions
- Plastic Poly Board
- 190 w x 264 h x 35 d
Mounting Plate Bracket
- 147 w x 142 h
- Height 460mm oa
Distance between centres 110mm h x 125mm w
Vertical Lift 267mm
Weight Capacity 45Kg
Shipping Weight 5.9 Kg
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIERS
NZ Code 95880
