Oversize Crane Ring G100-Thiele 20mm 22.40T WLL
Oversize Crane Ring G100-Thiele 20mm 22.40T WLL
Action Outdoors Shop
1/348 Rosebank Road
Avondale
AUK
Auckland 1026
New Zealand

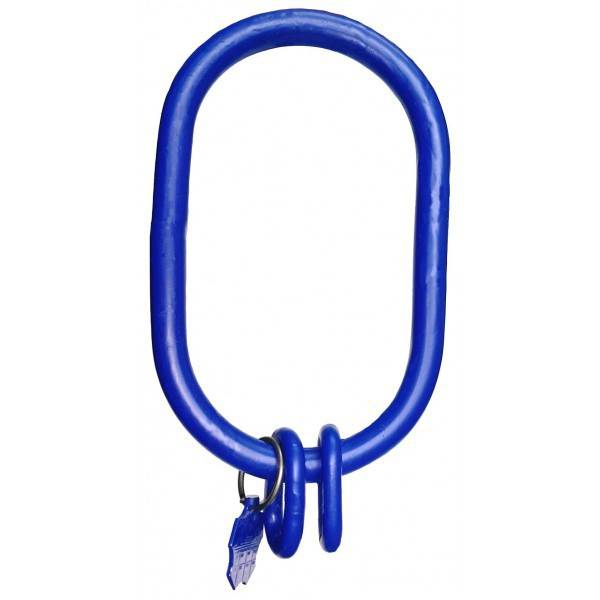

Oversize Crane Ring G100 - Thiele 20mm 22.40T WLL - All Rings 180mm IW x 340mm IL Product Number F18162025
Oversize Crane Ring G100-Thiele 20mm 22.40T WLL
Features
- All Rings 180mm IW x 340mm IL
- Rating on 2Legs at 90 Degrees
- Size/Rating; 20mm 22.40T WLL
Dimensions
- 8mm 3.55T Ring - 24mm x 340mm x 180mm, Mini Rings 16mm x 70mm x 35mm
- 10mm 5.60T Ring - 28mm x 340mm x 180mm, Mini Rings 16mm x 70mm x 35mm
- 13mm 9.00T Ring - 32mm x 340mm x 180mm, Mini Rings 20mm x 90mm x 45mm
- 16mm 14.00T Ring - 40mm x 340mm x 180mm, Mini Rings 22mm x 100mm x 50mm
- 20mm 22.40T Ring - 45mm x 340mm x 180mm, Mini Rings 32mm x 140mm x 70mm
Angle WLL Limits - Confirmed by THIELE
- 60 Deg Internal 1.7 Factor
- 90 Deg Internal 1.4 Factor
- 120 Deg Internal 1.0 Factor
PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER - PLEASE CONTACT US IF UNSURE OF SHIPPING
Product No. F18162025
F - 03.01.22
