Titan

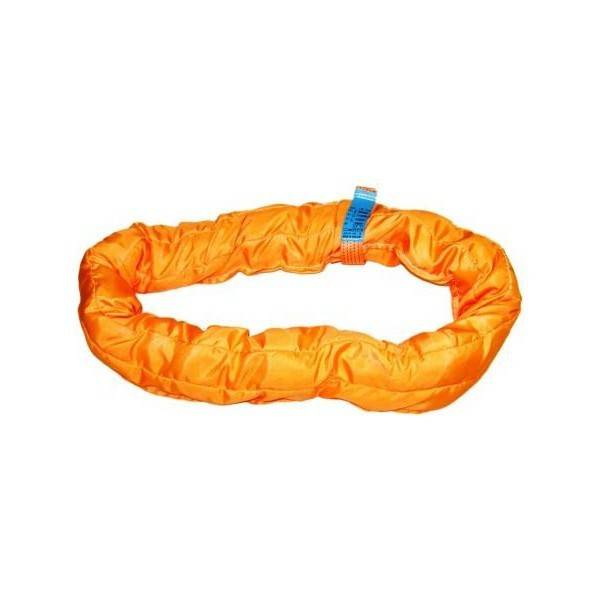

Roundsling - 15.0T Titan Orange 10m
Sent from NZ Supplier (1-2 Days)
Roundsling - 15.0T Titan Orange Titan Big Lift Endless Slings Size 10m Product Number RS15100E
Roundsling - 15.0T Titan Orange 10m
Features
- Certification to AS4497
- Unique Identification Number.
- All slings are made from 100 percent Polyester.
- WLL is clearly marked on each sling.
- International Colour Coded.
- Safety Factor 7-1
- Flat Thickness 21mm
- Size; 10m
NOTE; The International Ratings Chart attached works on 'external' angels.
New Zealand uses 'internal' angels so multi leg ratings 0-45 is 90 Degrees [Factor 2.1].
A 60 degree 2 leg sling example; If the weight of the load to be lifted is 20 tonnes and the angle between the legs of a two-legged sling is 60 degrees. This means that the load factor is 1.7 for the angle.
Based upon this example the 3 and 4 Leg Load Factor would be 2.6
The Following Must Be Adhered To
- Do not expose to temperatures above 90 degrees C
- Do not load in excess of the rated capacity
- Do not drag on the floor or over abrasive surfaces
- Do not twist, shorten, lengthen, or tie in knots
- Do not pull from under loads that are resting on the sling
- Do not repair any damaged sling
- Do not store in chemically active areas, under ultraviolet light or near heat
- Always protect from sharp edges and corners or abrasive surfaces
- Always inspect before each use
- Always ensure the correct sling is being used for the application
TOLERANCE
In accordance with AS4497.1, Roundslings shall have an accuracy of more/less than 3 percent of the nominal length expressed in metres.
Sling Weights
- 20T Roundsling 1.5m Approx 13kg
- 20T Roundsling 3m Approx 21kg
- 20T Roundsling 6m Approx 62kg
- 20T Roundsling 8m Approx 80kg
- 20T Roundsling 10m Approx 90kg
- 20T Roundsling 12m Approx 110k
PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER
PLEASE EMAIL US FOR A SHIPPING QUOTE
Product No. RS15100E
F - 06.12.21
