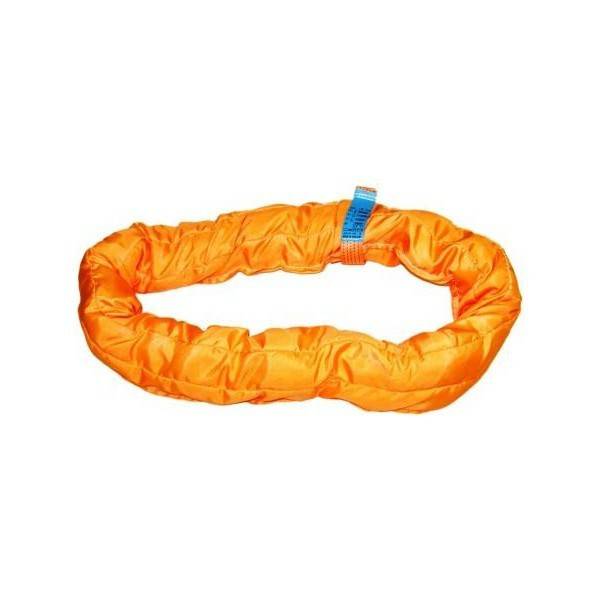

Roundsling - 15.0T Titan Orange 6m

• Certification to AS4497
• Unique Identification Number.
• All slings are made from 100 percent Polyester.
• WLL is clearly marked on each sling.
• International Colour Coded.

NOTE; The International Ratings Chart attached works on 'external' angels.

New Zealand uses 'internal' angels so multi leg ratings 0-45 is 90 Degrees [Factor 2.1].

A 60 degree 2 leg sling example; If the weight of the load to be lifted is 20 tonnes and the angle between the legs of a two-legged sling is 60 degrees. This means that the load factor is 1.7 for the angle.

Based upon this example the 3 and 4 Leg Load Factor would be 2.6

The Following Must Be Adhered To

• Do not expose to temperatures above 90 degrees C
• Do not load in excess of the rated capacity
• Do not drag on the floor or over abrasive surfaces
• Do not twist, shorten, lengthen, or tie in knots
• Do not pull from under loads that are resting on the sling
• Do not repair any damaged sling
• Do not store in chemically active areas, under ultraviolet light or near heat
• Always protect from sharp edges and corners or abrasive surfaces
• Always inspect before each use
