Titan

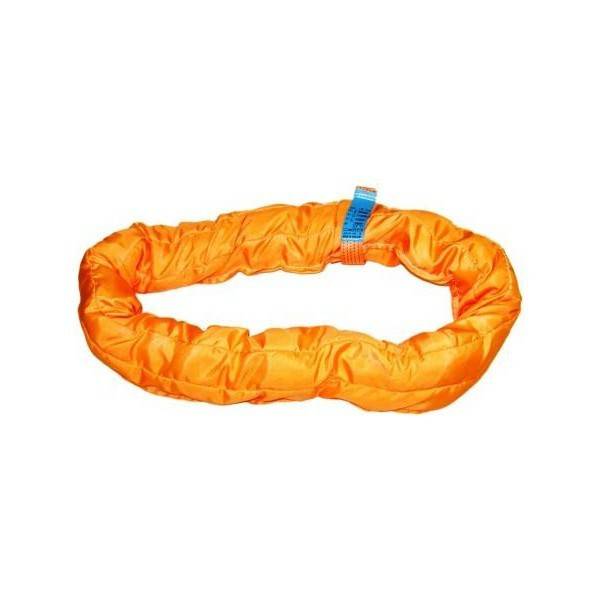

Roundsling - 15.0T Titan Orange 8m
Sent from NZ Supplier (1-2 Days)
Roundsling - 15.0T Titan Orange Titan Big Lift Endless Slings Size 8m Product Number RS1580E
Roundsling - 15.0T Titan Orange 8m
Features
- Certification to AS4497
- Unique Identification Number.
- All slings are made from 100 percent Polyester.
- WLL is clearly marked on each sling.
- International Colour Coded.
- Safety Factor 7-1
- Flat Thickness 21mm
- Size; 8m
NOTE; The International Ratings Chart attached works on 'external' angels.
New Zealand uses 'internal' angels so multi leg ratings 0-45 is 90 Degrees [Factor 2.1].
A 60 degree 2 leg sling example; If the weight of the load to be lifted is 20 tonnes and the angle between the legs of a two-legged sling is 60 degrees. This means that the load factor is 1.7 for the angle.
Based upon this example the 3 and 4 Leg Load Factor would be 2.6
The Following Must Be Adhered To
- Do not expose to temperatures above 90 degrees C
- Do not load in excess of the rated capacity
- Do not drag on the floor or over abrasive surfaces
- Do not twist, shorten, lengthen, or tie in knots
- Do not pull from under loads that are resting on the sling
- Do not repair any damaged sling
- Do not store in chemically active areas, under ultraviolet light or near heat
- Always protect from sharp edges and corners or abrasive surfaces
- Always inspect before each use
- Always ensure the correct sling is being used for the application
TOLERANCE;
In accordance with AS4497.1, Roundslings shall have an accuracy of more/less than 3 percent of the nominal length expressed in metres.
Sling Weights
20T Roundsling 1.5m Approx 13kg
20T Roundsling 3m Approx 21kg
20T Roundsling 6m Approx 62kg
20T Roundsling 8m Approx 80kg
20T Roundsling 10m Approx 90kg
20T Roundsling 12m Approx 110k
PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER
PLEASE EMAIL US FOR A SHIPPING QUOTE
Product No. RS1580E
F - 06.12.21
