Titan

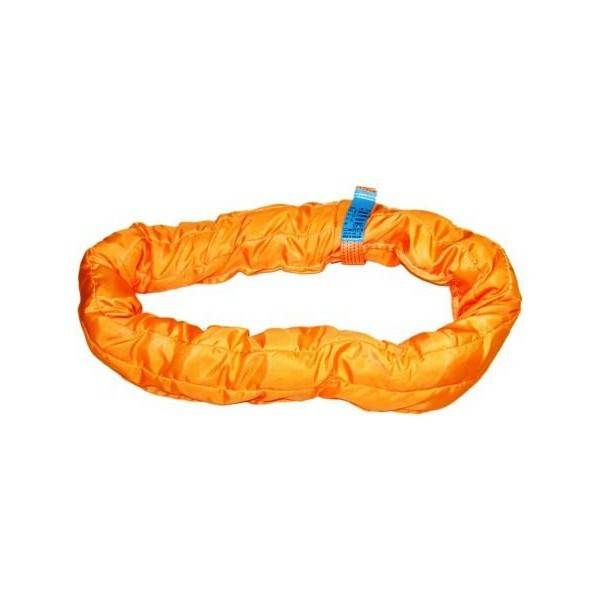

Roundsling - 35T Titan Orange 3m
Sent from NZ Supplier (1-2 Days)
Roundsling - 35T Titan Orange Titan Big Lift Endless Slings Size 3m Product Number RS3530E
Roundsling - 35T Titan Orange 3m
Features
- Certification to AS4497
- Unique Identification Number.
- All slings are made from 100 percent Polyester.
- WLL is clearly marked on each sling.
- International Colour Coded.
- Safety Factor 7-1
- Flat Thickness 28mm
- 350mm Circumference
- Size; 3m
NOTE; The International Ratings Chart attached works on 'external' angels.
New Zealand uses 'internal' angels so multi leg ratings 0-45 is 90 Degrees [Factor 2.1].
A 60 degree 2 leg sling example; If the weight of the load to be lifted is 20 tonnes and the angle between the legs of a two-legged sling is 60 degrees. This means that the load factor is 1.7 for the angle.
Based upon this example the 3 and 4 Leg Load Factor would be 2.6
The Following Must Be Adhered To
- Do not expose to temperatures above 90 degrees C
- Do not load in excess of the rated capacity
- Do not drag on the floor or over abrasive surfaces
- Do not twist, shorten, lengthen, or tie in knots
- Do not pull from under loads that are resting on the sling
- Do not repair any damaged sling
- Do not store in chemically active areas, under ultraviolet light or near heat
- Always protect from sharp edges and corners or abrasive surfaces
- Always inspect before each use
- Always ensure the correct sling is being used for the application
TOLERANCE
In accordance with AS4497.1, Roundslings shall have an accuracy of more/less than 3 percent of the nominal length expressed in metres.
- 35T Roundsling 1.5m [Approx 18kg]
- 35T Roundsling 3m [Approx 35kg]
- 35T Roundsling 6m [Approx 65kg]
- 35T Roundsling 8m [Approx 88kg]
- 35T Roundsling 10m [Approx 110kg]
- 35T Roundsling 12m [Approx 119kg]
PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER
PLEASE EMAIL US FOR A SHIPPING QUOTE
Product No. RS3530E
F - 06.12.21
15.18
