TITAN

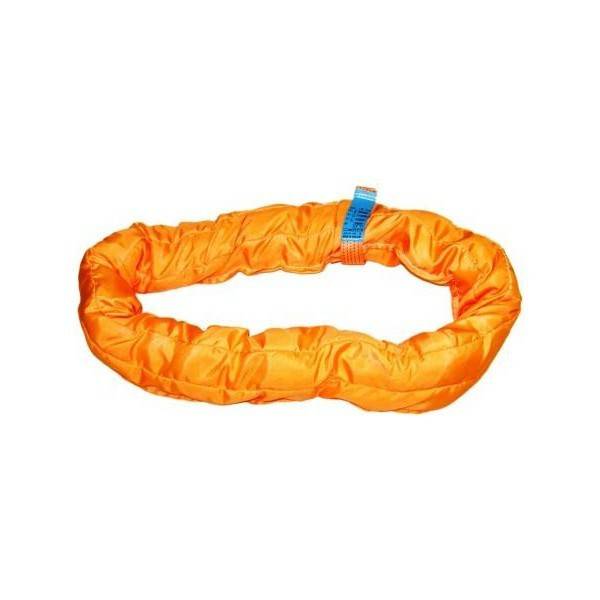

Roundsling - 85T Titan Orange 6m
Online Sales only - Sent directly from NZ supplier (not avaiable in store)
Sent from NZ Supplier (4-7 Days)
Quantity:
Round sling - 85T Titan Orange Titan Big Lift Endless Slings Size 6m Product Number RS8560E
Roundsling - 85T Titan Orange 6m
Features
- Certification to AS4497
- Unique Identification Number.
- All slings are made from 100 per cent Polyester.
- WLL is clearly marked on each sling.
- International Colour Coded Orange
- Safety Factor 7-1
- Flat Thickness 70mm
- Size: 6m
- Estimated Sling Weight; 6m 160KG
NOTE: The attached International Ratings Chart works on 'external' angles.
New Zealand uses 'internal' angels so multi-leg ratings 0-45 is 90 Degrees [Factor 2.1]
A 60 degree 2 leg sling example; If the weight of the load to be lifted is 20 tonnes and the angle between the legs of a two-legged sling is 60 degrees. This means that the load factor is 1.7 for the angle.
Based upon this example, the 3 and 4 Leg Load Factor would be 2.6
The Following Must Be Adhered To
- Do not expose to temperatures above 90 degrees C
- Do not load more than the rated capacity
- Do not drag on the floor or over abrasive surfaces
- Do not twist, shorten, lengthen, or tie in knots
- Do not pull from under loads that are resting on the sling
- Do not repair any damaged sling
- Do not store in chemically active areas, under ultraviolet light or near heat
- Always protect from sharp edges and corners or abrasive surfaces
- Always inspect before each use
- Always ensure the correct sling is being used for the application
TOLERANCE;
In accordance with AS4497.1, Round slings shall have an accuracy of more/less than 3 per cent of the nominal length expressed in metres.
Estimated Sling Weight: 6m 160KG, 12M 290kg
PLEASE READ CAREFULLY TO ENSURE THAT THIS ITEM MEETS YOUR SPECIFIC NEEDS
THIS ITEM IS SHIPPED DIRECTLY FROM OUR SUPPLIER
PLEASE EMAIL US FOR A SHIPPING QUOTE
Product No. RS8560E
