Description
Overview

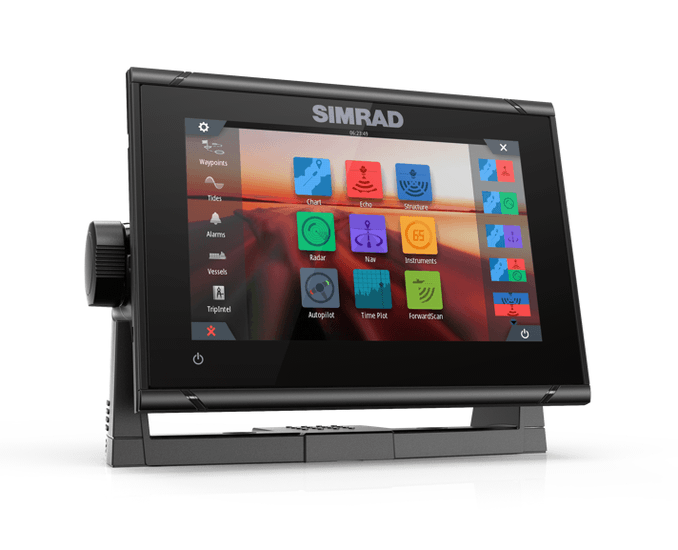

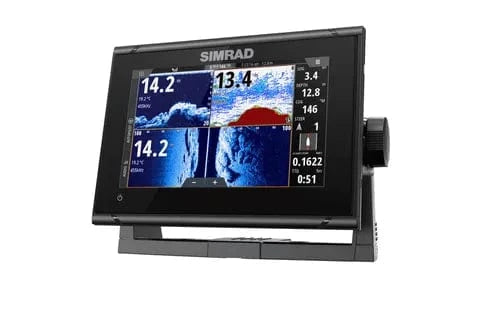

The Simrad GO7 XSR chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.
Key Features:
Comes with Active Imaging 3in1 Transducer and AUS/NZ C-MAP Chart
Easy to use multi-touch interface
Radar display for Simrad Broadband 3G™/4G™ and Halo™ Pulse Compression radar
Supports the widest range of charts
Widescreen with bright LED backlight
Built-in Broadband Sounder™, CHIRP sonar
Display
| Resolution | 800x480 |
| Screen brightness | 1200 nits |
| Size and type | 7" Diagonal High Visibility Color TFT LCD |
| Backlight color | White |
| Viewing angles | 80° top/bottom, 80° left/right of center |
Electrical
| Recommended fuse rating | 3A |
| Power consumption(max) | 20 W |
| Power consumption nominal | 12 W |
| Supply voltage | 12 V DC (10 - 17 V DC) |
Connectivity
| Ethernet | 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked) |
| Radar compatibility | Halo, Broadband, HD Radars |
| Sonar | Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic connector. Connection to any external sounder module is not supported. |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 | No connection but exports NMEA 0183 over WiFi |
| Video In / Out | None |
| WiFi | Internal |
| Bluetooth | Internal |
| GPS antenna | Internal |
| GPS time to first fix | Cold start less than 90 seconds exposed to open sky, Satellite reacquisition 5 sec |
| GPS correction | WASS, MSAS, EGNOS, GLONASS, *Galileo ,*BeiDou. *Limited by network |
| GPS position accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GP receiver channels | 32 Channels |
| GPS update rate | 10 Hz |
| AIS | Receive AIS data over NMEA 2000 only |
Compliance / Warranty
| Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 |
EN 300 440-2, V1.4.1"
| Warranty period | 2 Years |
Easy to Use Multi-Touch Display
The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views.
Chartplotter Navigation & Waypoint Management
Simrad GO series displays are full-featured chartplotters with support for a wide range of cartography options including C-MAP®, Navionics®, C-MAP Genesis®, and NV Digital® Charts. Mark waypoints with a simple touch, and assign meaningful names that make them easy to find on your next trip.
Easier Navigation with Automatic Routing
Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and your display will suggest the shortest, safest route. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Dock-to-dock Autorouting), and C-MAP MAX-N+ charts (C-MAP Easy Routing). * Automatic routing features are unavailable in North America.
Navionics® SonarChart™ Live support
Enjoy the most up-to-date charts on the water with Navionics SonarChart Live. Available exclusively with Navionics charts, this feature creates a depth-contour overlay using live sonar data from your display’s built-in sounder. The results are shown on your GO series display and updated in real-time as you fish or cruise.
Cruise Charting View
Designed with power boating in mind, the Simrad GO series offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display.
Simrad SonicHub®2 Compatible
The optional SonicHub®2 module is the perfect companion to your GO series display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices with this black-box audio system that eliminates the need for a separate head unit.
Built-in Wireless Connectivity
The Simrad GO series provides access to online services including easy wireless map downloads and software updates via any wireless hotspot. On the water, connect your Simrad GO series display to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free Link app.
* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls.
